MAIN FUNCTIONS:
– 2 Headphones Jack Outputs (6,35mm – 1/4″)
– Inputs Selection and Indicators
– Analog Volume Control (ALPS potentiometer)
– Optional Remote Control (volume and sources selection)
– Stand-by

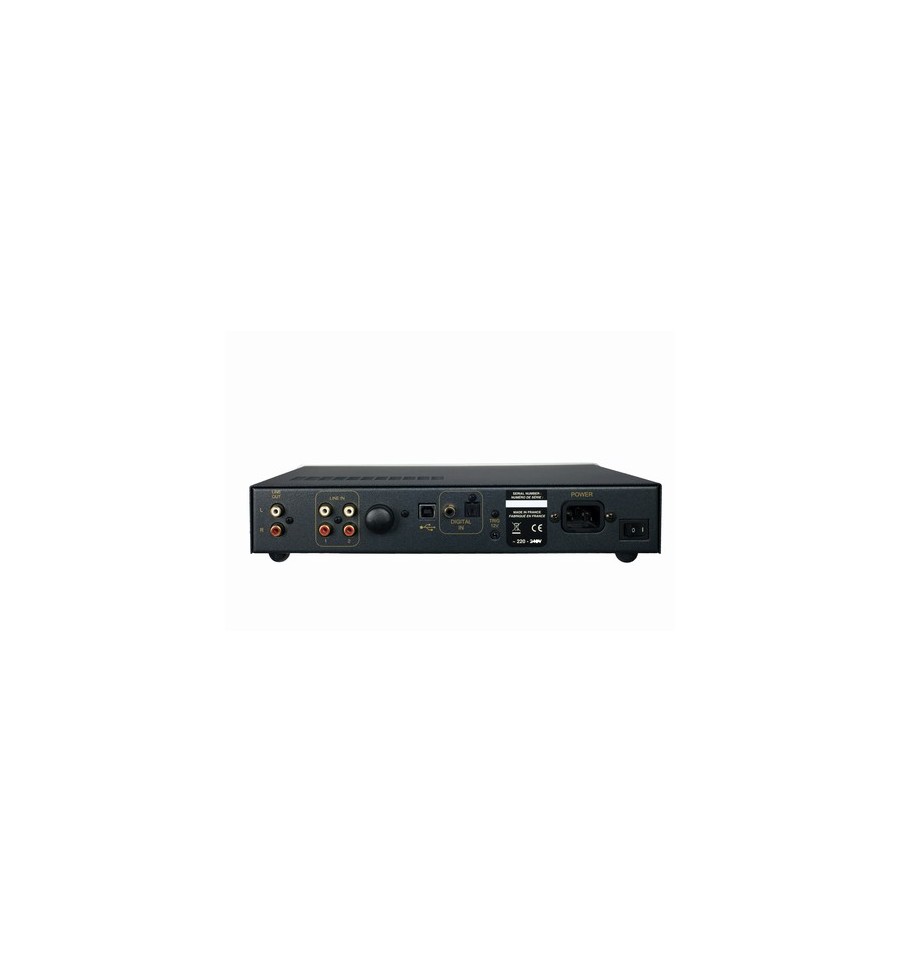

CONNECTING:
– 2 Line Inputs (RCA)
– 1 Preamp. Output (RCA)
– 1 Coaxial Input (32bits/384kHz)
– 1 Optical Input (24bits/192kHz)
– 1 Trigger 12V output (direct switsh on/off with MA100)
– 1 USB-B 24/192kHz asynchronous input
– 1 Bluetooth input (i2C direct)

Specifikationer:

- PowerSupply: 12,8 VA
- Power: 1,4W / 32ohms
- Impulse Power: 6,8W/ 32ohms
- Total of capacitors: 12 425 µF
- Input Impedance: 220 kohms
- Output Impedance on Headphones (X2) 1 ohm
- Bandwidth: 1Hz – 150kHz
- Rising Time: 3 µs
- Signal/Noise Ratio: 112 dBA
- Distorsion at 1kHz: < 0,01%
- Dimensions: 320*220*60 mm
- Weight: 2,5 Kg
