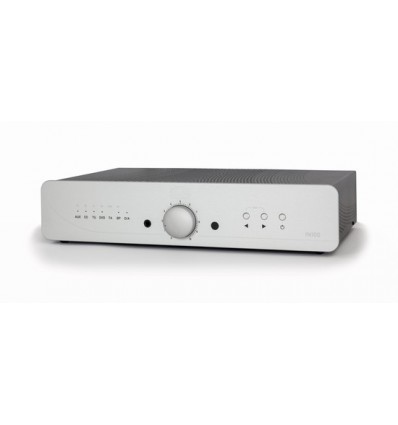

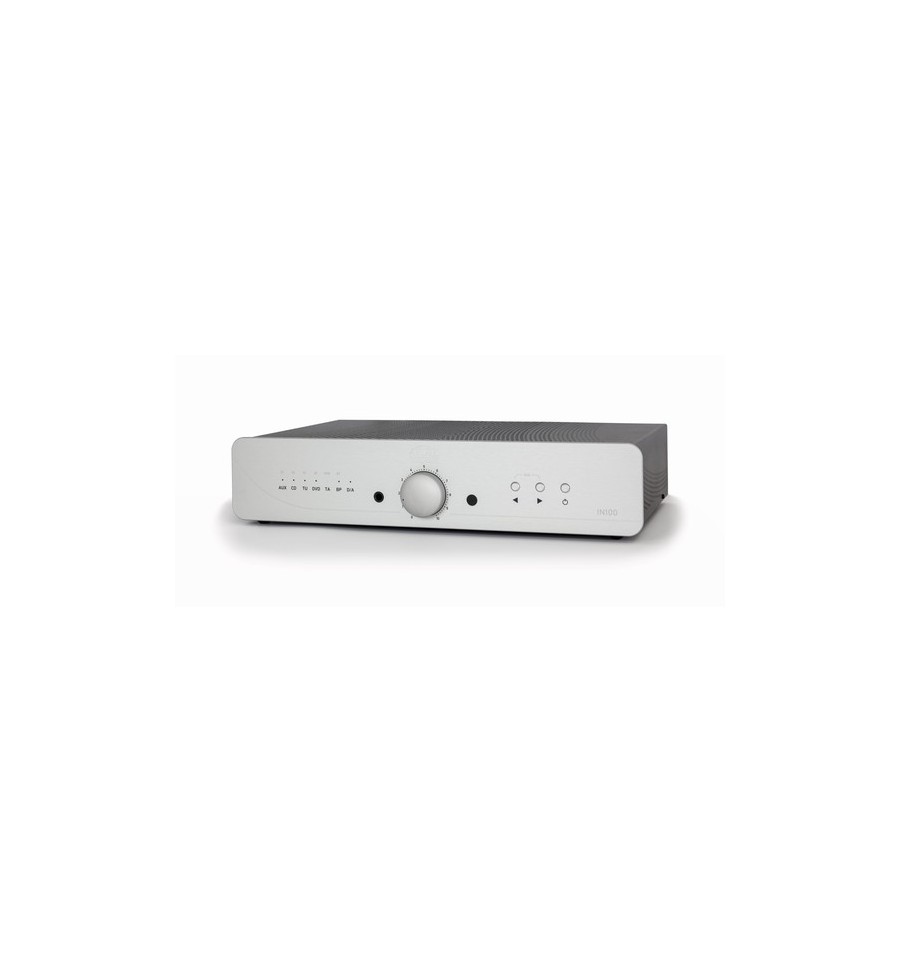

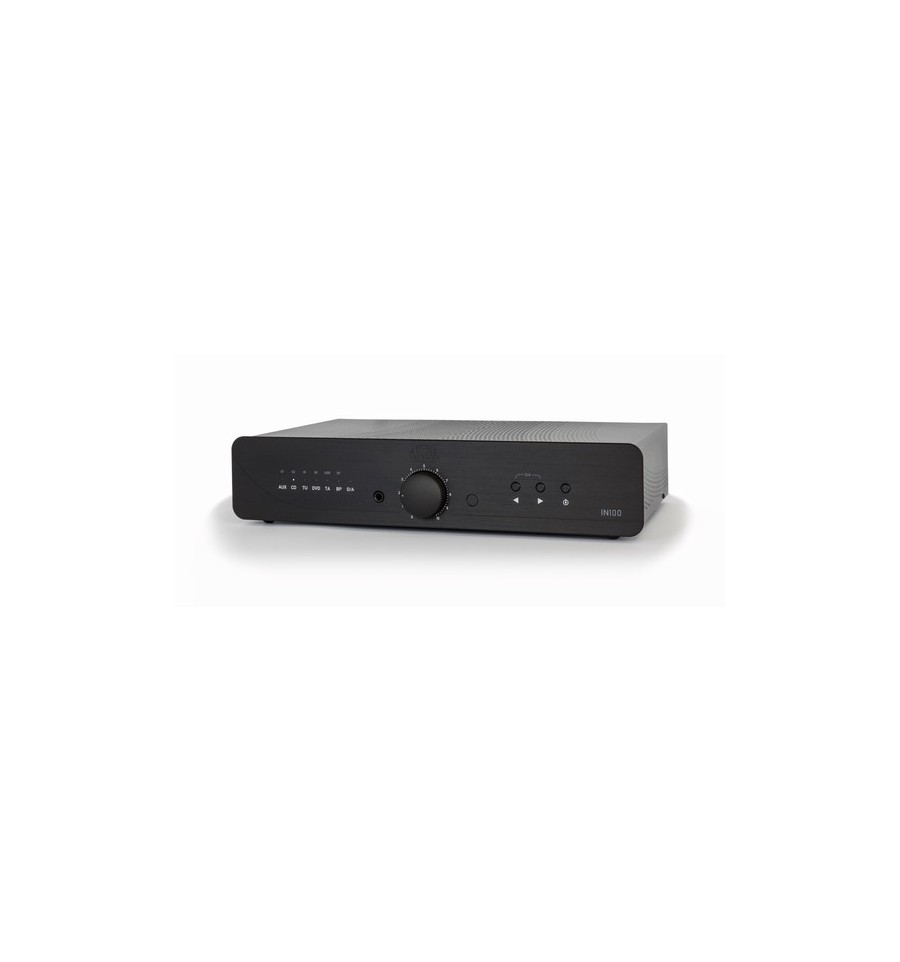

Kraftfull integrerad förstärkare som driver det mesta och låter riktigt roligt.

Main features:

- Amplifier/preamplifier Integrated 2x100Wrms/channel/8Ω
- 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium knob and keys
- Audio stages with discrete components, MKP technology link capacitors, high performances heatsinks
- PCB with double layer nickel/gold, thermal protection
- Double Toroidal Transformer of 340 VA each
- ALPS motorised potentiometer
- Direct acces of inputs from the front panel or the remote control

POSSIBLE OPTIONS:
This device can be equipped with both a choice of one of two different DAC-cards and one of two different Phono-cards. These cards are listed below.

Phono (RIAA) Board on AUX Input (choice of 1):
- P100 (set as MM or MC) This is of higher quality than the P50.
- P50 (MM)

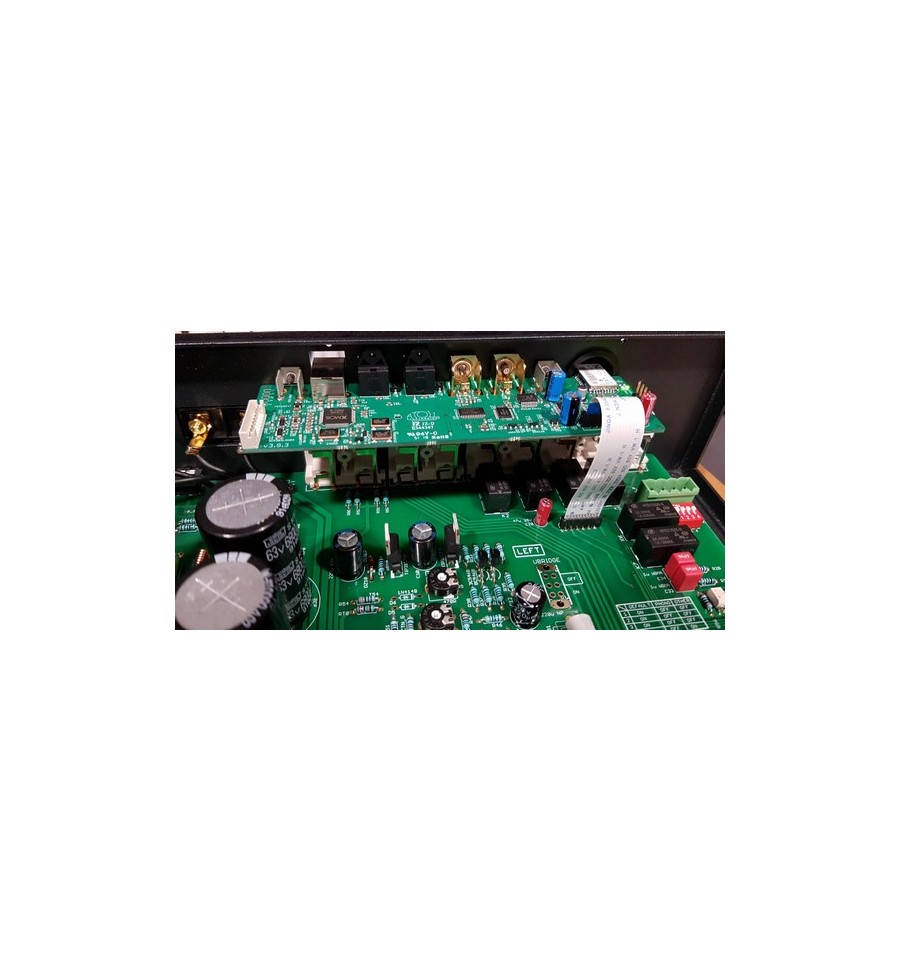

Digital board (choice of 1) :
- Digital Board Signature
1 Bluetooth receiver
2 Coaxial Inputs (24Bits/192kHz)
2 Optical Inputs (24Bits/192kHz)
1 USB-B Input: PCM & DSD
Audio Converter: AKM – AK4490
PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous).
DSD : DSD64 & DSD128.
USB Interface: XMOS with specific program designed for ATOLL.

– SPDIF Board
2 Coaxial Inputs (24Bits/192kHz)
2 Optical Inputs (24Bits/192kHz)
This card is the same as the Signature-card except the USB-input and the Bluetooth receiver.

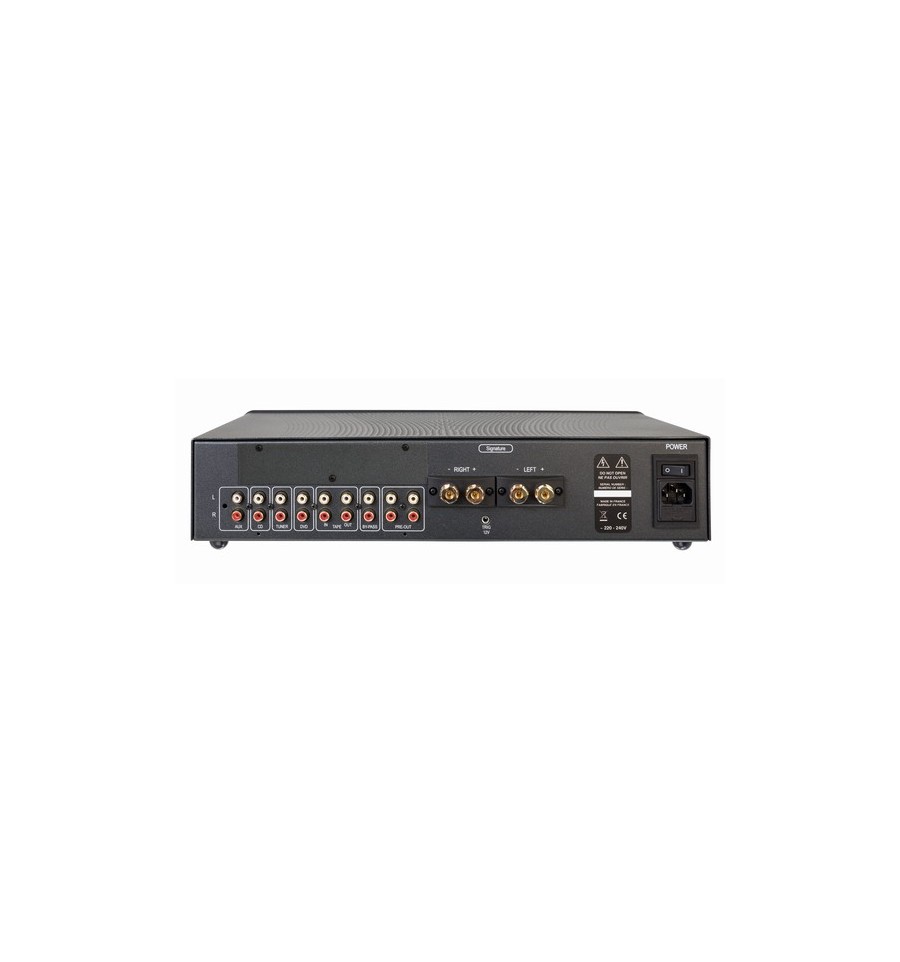

Connections:

– 5 audio Inputs (RCA), including TAPE (IN+OUT with monitoring loop)
– 1 By-pass Input (using as power amplifier)
– 2 Pre-out Outputs (for bi-amp or to link to a subwoofer)
– 1 Headphones jack 6,35mm
– 1 trigger Output 12V

Specifikationer:

- Power Wrms/channel/8Ω: 100 W
- Power Wrms/channel/4Ω: 140 W
- Impulse Power: 180 W
- Power Supply (VA): 680
- Total of capacitors (µF): 31 474
- Inputs: 4 + 1 monitor
- Input Impedance (kΩ): 357
- Sensibility (mV): 100
- Rising Time (µs): 2,5
- Signal/Noise Ratio (dBA): 100 dB
- Bandwidth: 5 Hz – 100 kHz
- Weight(kg): 11
- Dimensions (mm): 440x90x300mm
