Alla produkter från Atoll Electronique tillverkas i Brecey, Frankrike i Atolls egna lokaler.

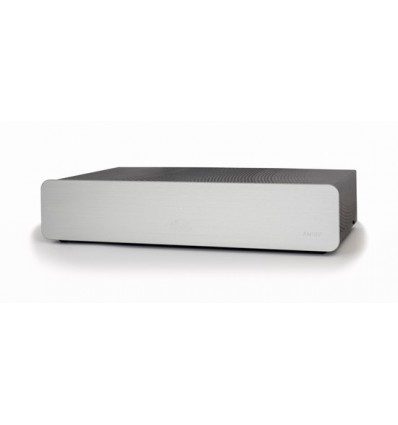

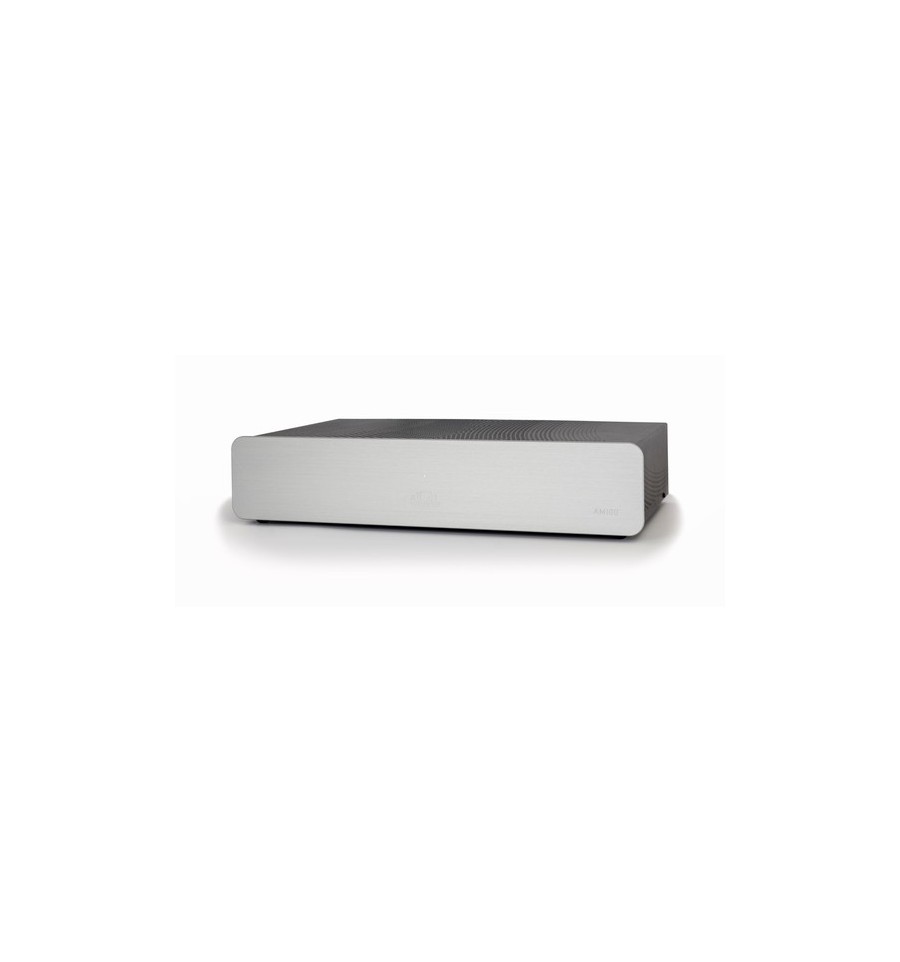

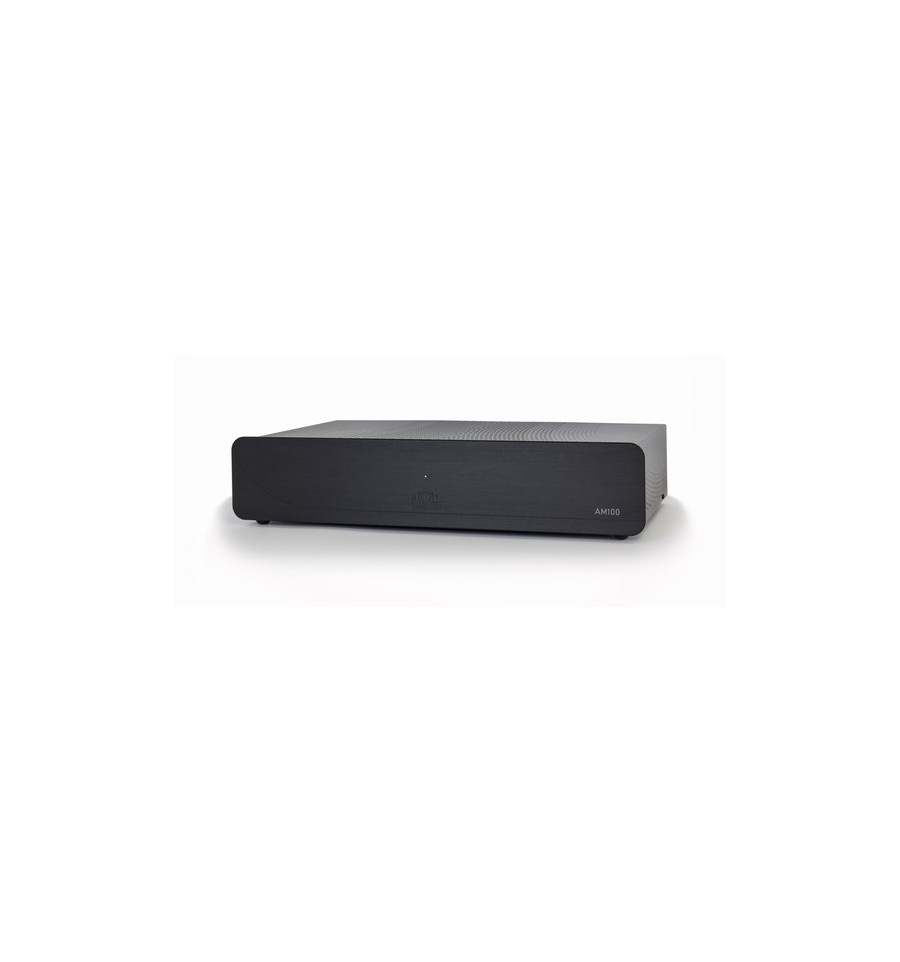

The power amplifier AM100 Signature can be added to any stereo or multichannel solutions. Coupled with a preamplifer, they make for transparent and detailed listening. The various sound planes are rigorously respected. Built to be evolutionary, they can be used by themselves or in bi-amplification.

Further, all models are mono-block bridgeable by a single switch on the main board.

It is equipped on serial of a 12V Trigger (auto switch on/off with a preamp with 12V Trigger).

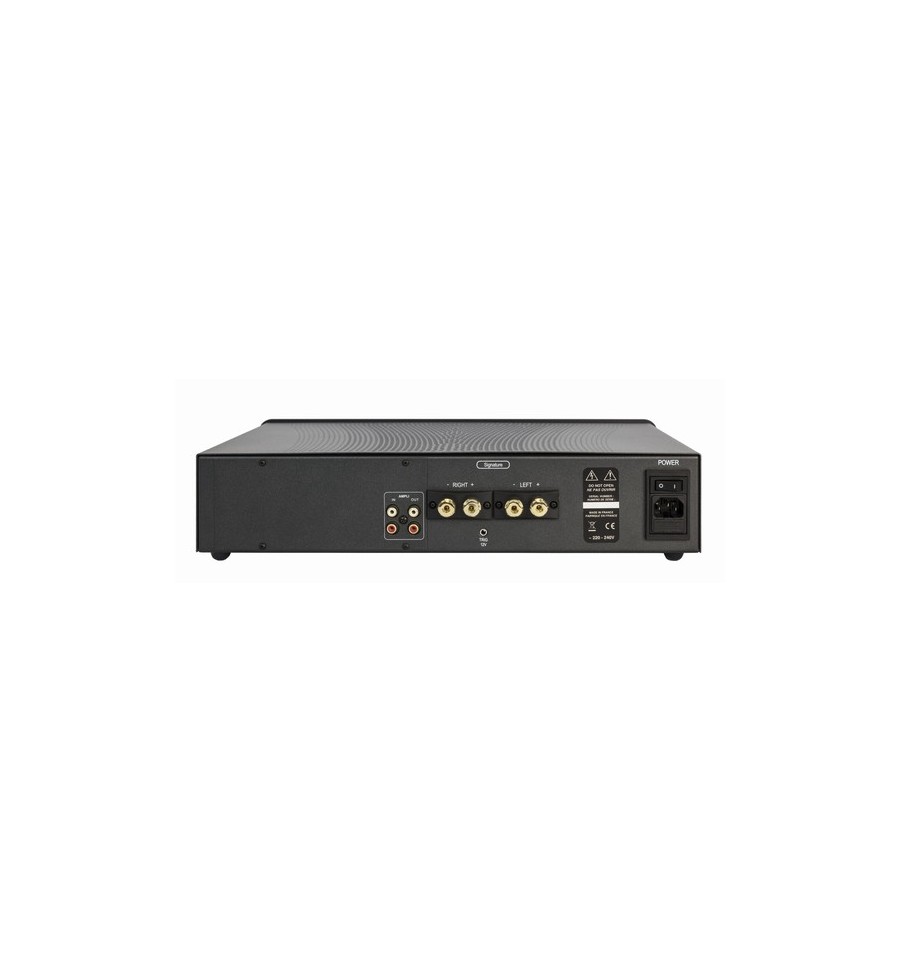

Connections:

- 1 RCA Input
- 1 RCA Output (allows to link a second amplifier or a subwoofer)
- 1 Trigger 12V input
- Gold plate terminal for Speakers

Specifikationer:

- Power Wrms/channel/8Ω: 100 W
- Power Wrms/channel/4Ω: 140 W
- Impulse Power: 180 W
- Bridge mode 8Ω: 300W
- Power Supply (VA): 680
- Total of capacitors (µF): 32 447
- Inputs: 1
- Input Impedance (kΩ): 47
- Sensitivity: 1,77 volt
- Rising Time (µs): 1,3
- Signal/Noise Ratio (dBA): 100 dB
- Bandwidth: 5 Hz – 100 kHz
- Weight(kg): 10
- Dimensions (mm): 440x90x295mm
