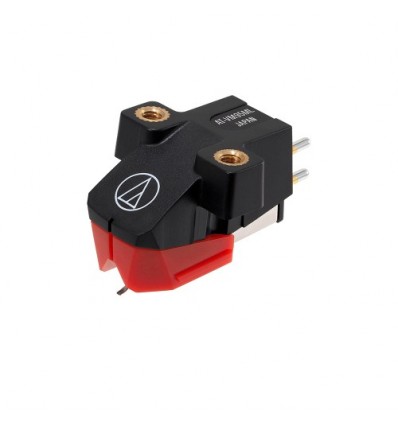

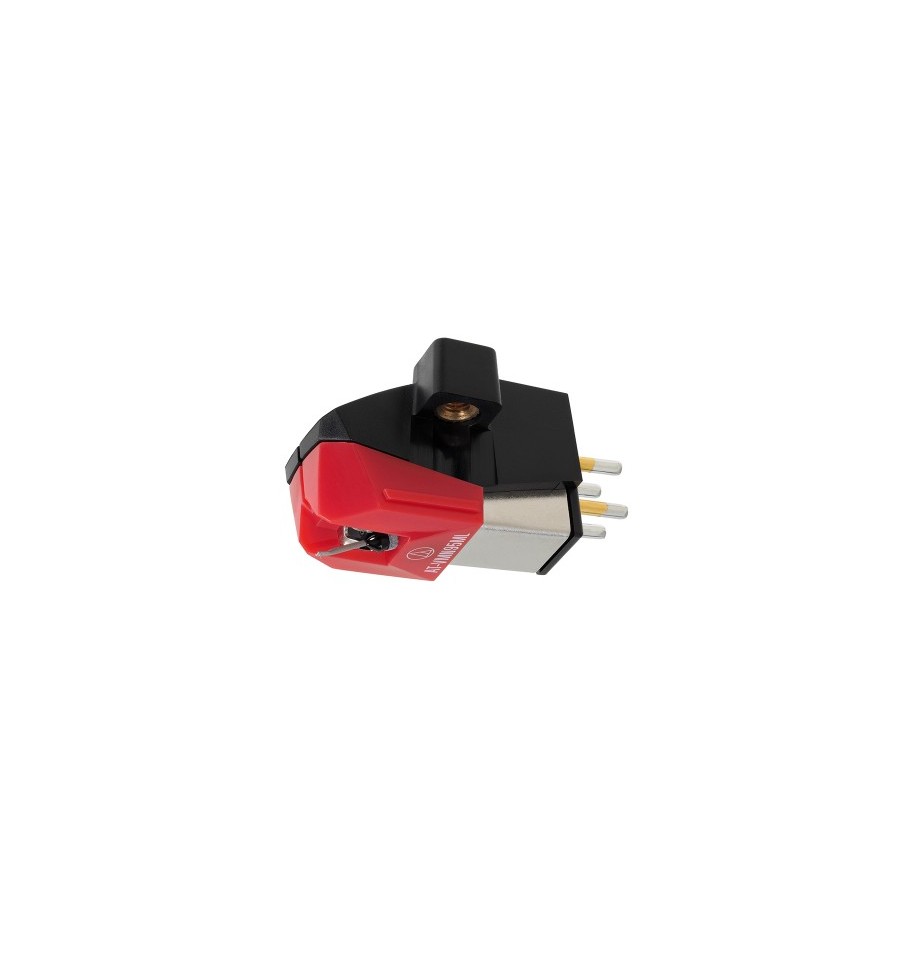

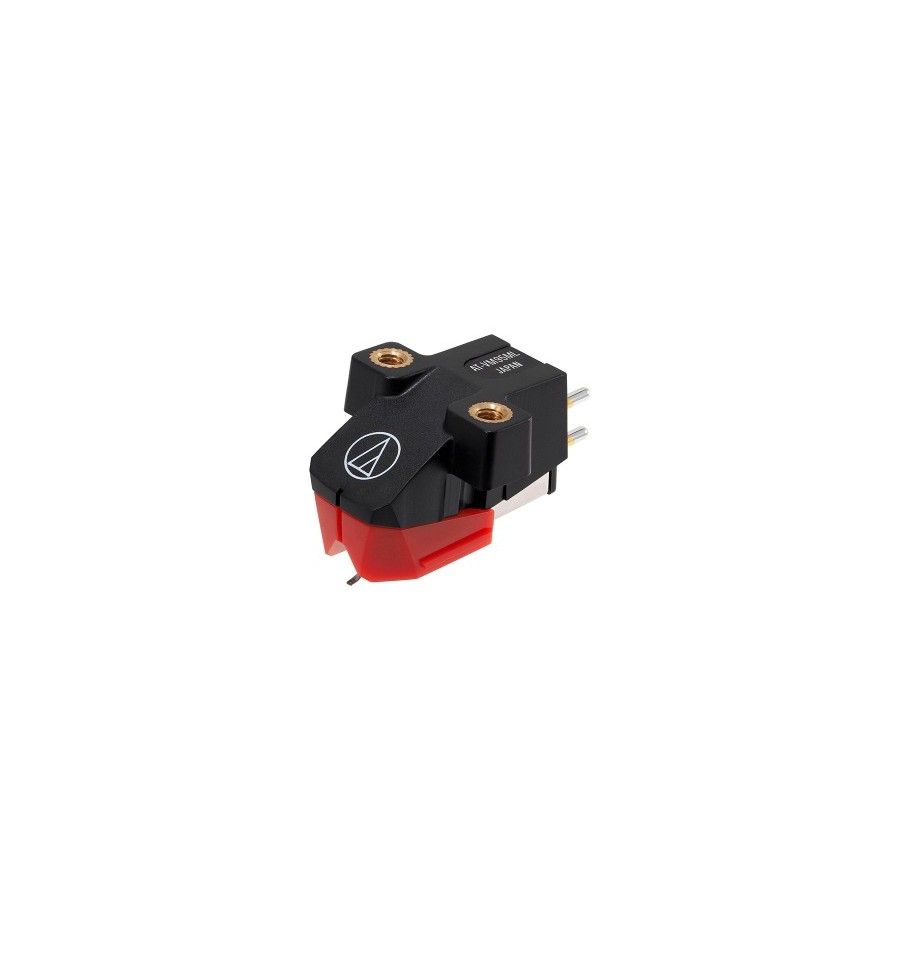

The AT-VM95ML, features a Nude Microlinear diamond, not only the Microlinear stylus will permit to double the duration of your stylus. The performance of a line contact stylus, will minimize the “inner groove distortion” as well as providing extended frequency response and maximize resolution in the medium and high frequencies of the audio program material.
- Aluminium cantilever
- 3.5mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- 20 to 25,000Hz frequency response
| Model | AT-VM95ML |
| Type | VM Stereo Dual Magnet |
| Mounting | 1/2” centres |
| Frequency Response | 20 - 25,000 Hz |
| Channel Separation | 23 dB (1 kHz) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.8 - 2.2g (standard 2.0 g) |
| Stylus Shape | Microlinear |
| Stylus Size | 2.2 x 0.12 mil |
| Stylus Construction | Nude Square Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 10 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil | T.P. Copper |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100-200 pF |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Replacement Stylus | AT-VMN95ML |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
