AVM SD 8.3 Expand

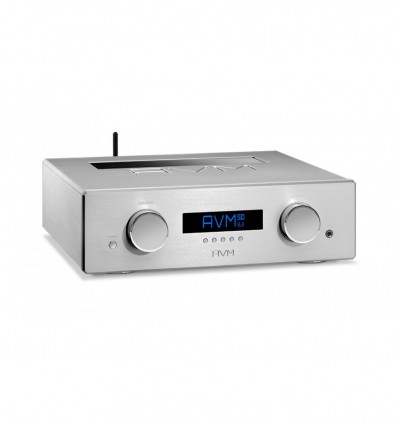

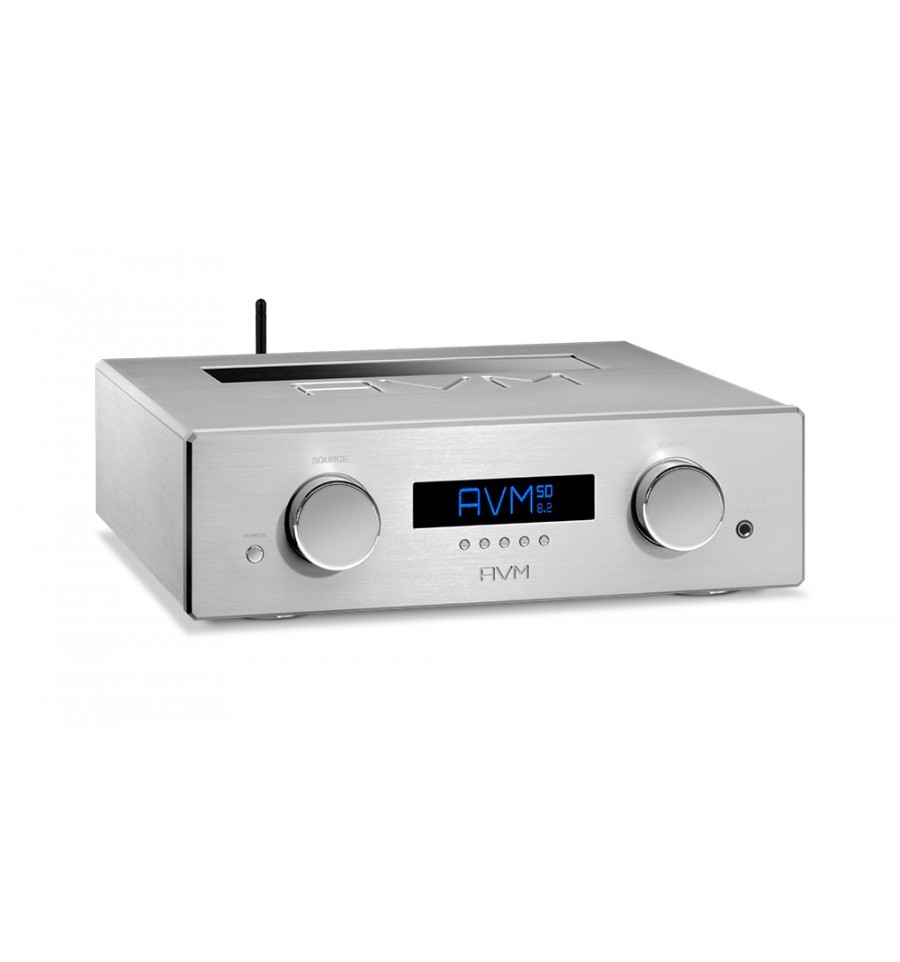

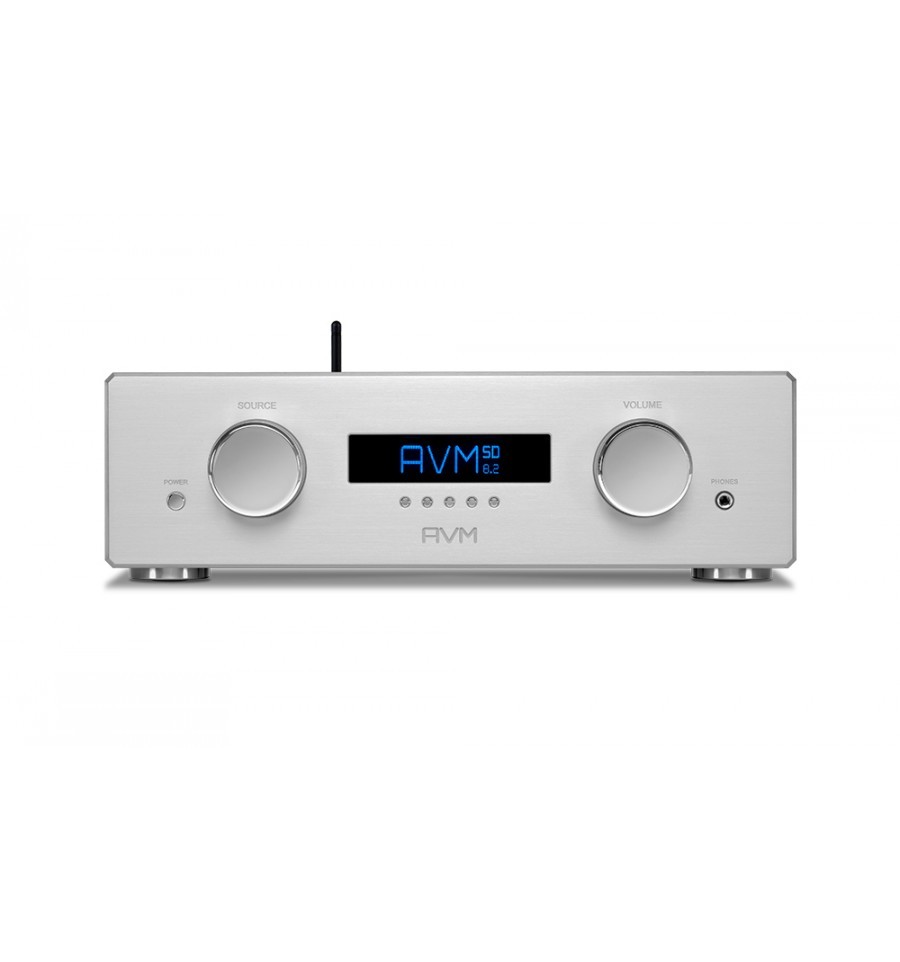

AVM Ovation SD 8.3

AVM AVM

Ny

8.2 blir 8.3!

Ny X-engine app!: AirPlay 2, Roon Ready, Spotify Connect, HIGHRESAUDIO / QOBUZ / TIDAL (HiRes Quality), UPnP

Analog preamplifier incl. HiFi Streaming

· Quad DAC · DSD128 · 384kHz/32bit

· Class-A headphone amplifier

· Convenient control via RC S App for iOS & Android

Mer detaljer

159 000 kr

inkl.

Läs Anthony Cordesman fantastiska text av SD 6.2!: (samma DAC som i 8:an)

The Absolute Sound on AVM SD 6.2

OVATION SD 8.2 Streaming DAC in brief

SPECIFICATIONS

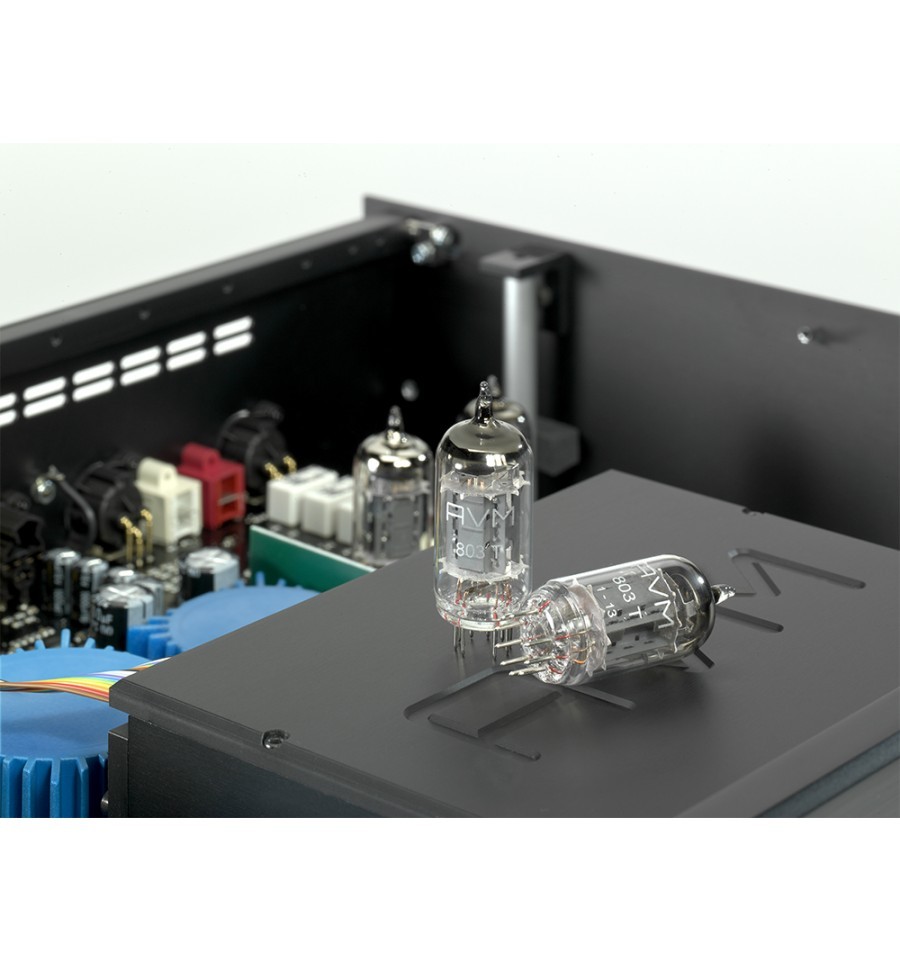

Tube Line Stage

SD 8.3: OVATION 803 T

Analog Inputs

1 x RCA, 1 x XLR

Analog Outputs

1 x XLR, 1 x Line/Fix Out RCA, 1 x Pre/Var Out RCA

Digital Inputs

2 x S/PDIF Coax, 2 x S/PDIF Optical, 1 x USB A (Stick/HDD), 1 x USB B, 1 x AES/EBU

Digital Outputs

1 x S/PDIF Coax, 1 x S/PDIF Optical

Bluetooth

HiFi Bluetooth (4.2 Standard)

DSD

DSD128 (5,6 MHz) via USB B

Music Streaming

AirPlay 2, Roon Ready, Spotify Connect, HIGHRESAUDIO / QOBUZ / TIDAL (HiRes Quality), UPnP

Multiroom

Multiroom & Party Sync Mode with all RC X App compatible AVM models

Radio

Webradio via Airable Internet Radio Station Database (automatic updates)

Network

Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac) 2.4/5GHz

Tone Control

Balance, Bass, Treble, Contour (Loudness)

Headphone Output

Class-A 6,35 mm

Trigger Outputs

2 x 3,5 mm

Included Remote Control

RC X App for iOS & Android

Optional Remote Controls

RC 9 RF/IR Remote Control with color display (programmable)

Finish

Aluminium Silver, Aluminium Black

Product Dimensions

355 x 430 x 130 mm (L x W x H)

Product Weight

12 kg

Product Line

OVATION

För dig som gillar text:

THE SD 8.3 AND SD 6.3 AT A GLANCE

OVATION SD Streaming DAC – a completely different animal: The new SD  6.3 and SD 8.3 herald a completely new category of AVM components with streaming capabilities. Both components combine an analog pre-amplifier with 2 analog line inputs, DAC with DSD, streaming  lient, web radio and a high performance headphone amp, all into one unit. We call them Streaming DAC or short: SD.

Both flagship models are close relatives: In the SD 6.3 we focus on pure solid state technology in all amplifier stages, while the OVATION Tube Line Stage of the SD 8.3 creates a unique warm and natural sound reproduction. This is technology is compiled into an OVATION Line cabinet size well known from our modular PA 8.2 pre-amplifier.

Since these SD units may serve as full-blown pre-amplifiers, combining them with our power amps SA 6.3, SA 8.3 or MA 6.3 & 8.3 is a logical consequence. Furthermore the SD 6.3 and SD 8.3 may as well be combined with active speakers. With the new SD 6.3 and SD 8.3, so called computer audio comes to the OVATION Line. A completely new combination of analog pre-amplifier, streaming client, DAC with DSD and headphone amp creates a new category of digital sound center for listeners with a focus on digitally streamed music from different sources.

Two ESS 9018 K2M Sabre32 DACs per channel are being applied. This way even the digital domain the music signals are being processed in balanced mode. High precision clocks are being applied. The voltage regulators are separated for both DACs and the supply voltage is regulated twice. This decouples the DAC entirely from other parts of the digital circuitry. The AVM streaming engine allows countless formats to be processed and is upgradeable making it future proof for additional formats.

Kundbild. Under ser man HRS fina Vortex vibrationsdioder.

Detta försteg driver ett Burmester 911 Mk3

Såhär skriver kunden, som förut hade fina AVM SD 5.2:

Jag är en streaming dac som gör mos av lillebror 5.2. Har betydligt högre upplösning, bättre transientsvar, ännu bättre kontroll i basen, öppnare ljudbild och man hör nästan vad det är dom sjunger för nått. Streaming motorn är förmodligen uppgraderad oxå, då tidal (flac) låter nästan lika bra som från nas (aiff).
