Alla produkter från Atoll Electronique tillverkas i Brecey, Frankrike i Atolls egna lokaler.

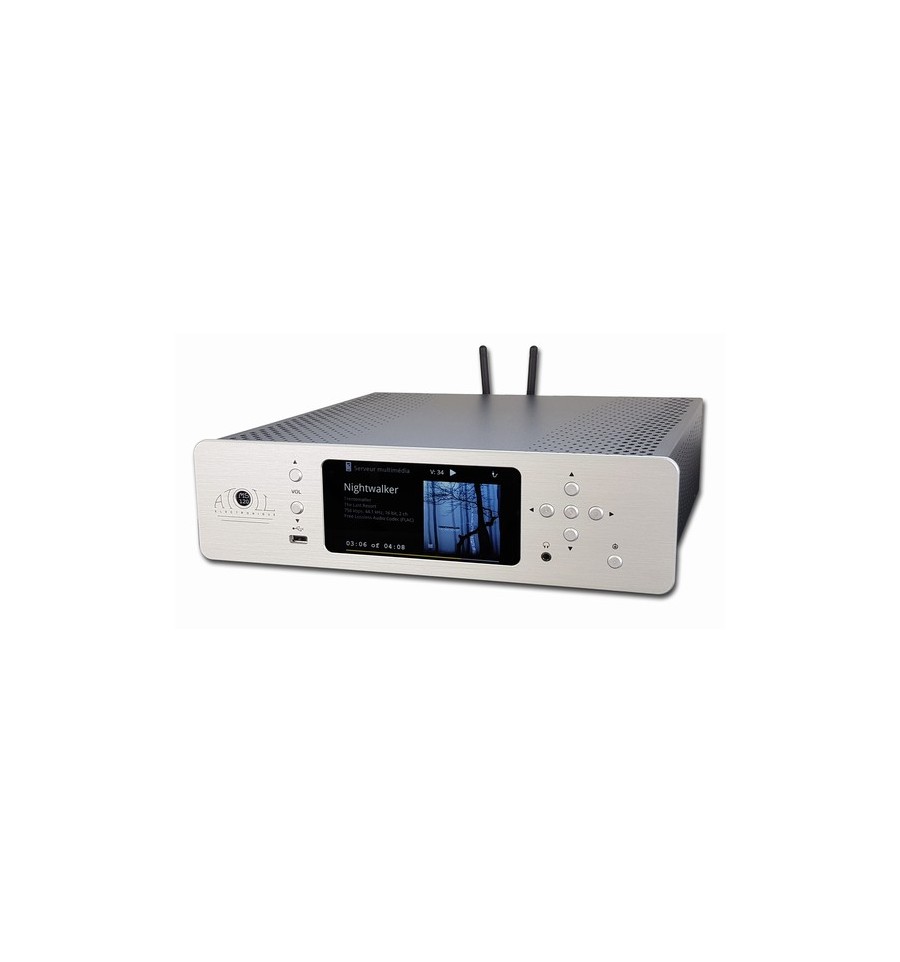

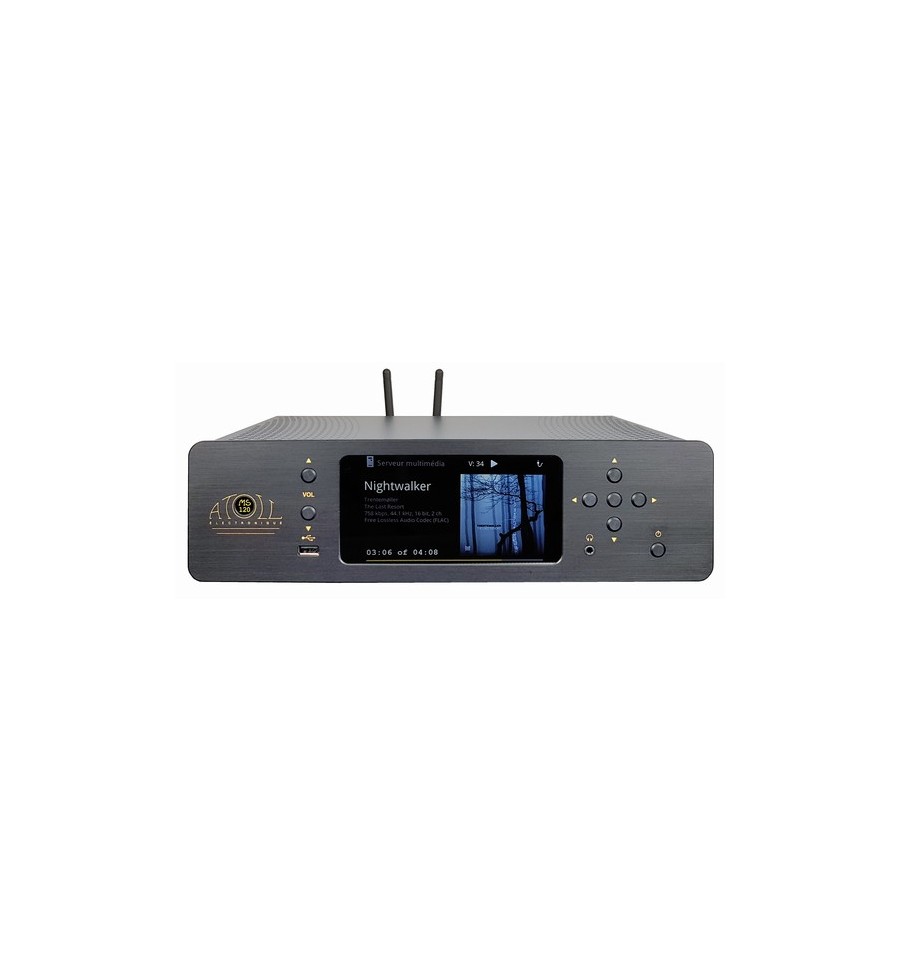

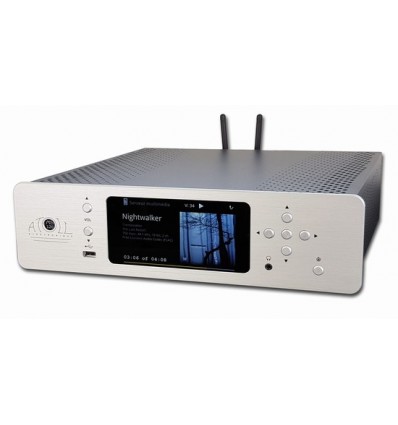

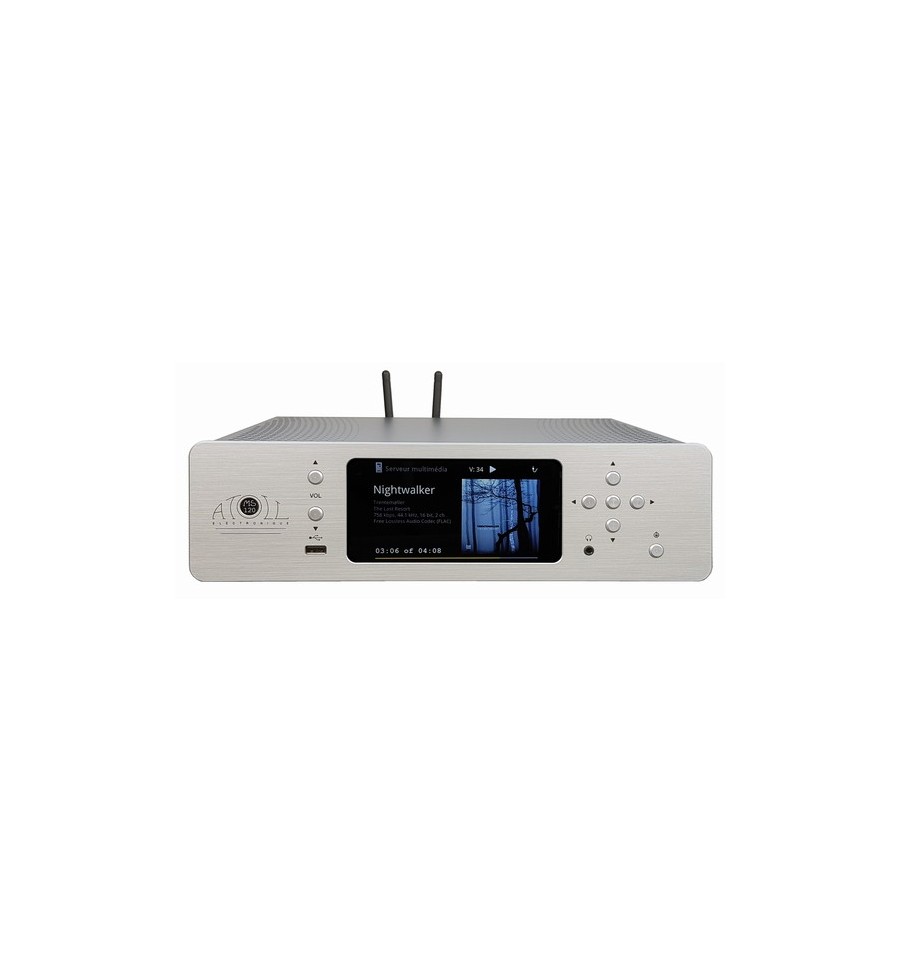

MS120 ersätter MS100. Det är nätverksstreamern i Atolls mini-serie. Den använder samma plattform som de andra nätverksspelarna i varumärket i ett reducerat format. Det är avsett att vara naturligt associerat med ett HD120 + MA100-par men det kan också integrera ett befintligt system som en ny källa.

Den här nya versionen ärver innovationerna från ST200 Signature: ny, mer intuitiv kontrollapplikation, inbyggt stöd för Qobuz, Tidal och Deezer, Audirvana-kompatibla, internetradio via Airable, support för DSD 64 & 128-filer, ny 5-tums LED-skärm, mm.

STREAMER:
- Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
- Displays the name, tags, album cover, resolution.
- “gapless” system (uninterrupted playback of consecutive audio tracks).
- Possibility to create Playlists.
- External control (with Qobuz, Audirvana…) with RTSP protocole.

MUSIC STREAMING:

• Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer
• Roon Ready
• Spotify Connect
• Tidal Connect
• Highresaudio music streaming

INTERNET RADIOS:
- Access to all internet radios with Airable system in high quality:
choices of more than 100 000 stations, podcasts…
- Displays logos stations and further information: titles, artists, resolution…
- Possibility to add radios to a « favorite » menu.

AUDIO:
- Symmetrical outputs stages with no feedback and discrete components polarized in A class
- Analog volume control (with commutated resistors) with possible By-Pass
- Transformer specifically dedicated to audio stages
- High Quality MKP link condensators.
- Burr-Brown PCM1796 converter.

END USERS:
- 5″ TFT led display (800*480).
- Serial remote control.
- Apple® and Androïd® free app.

DETAILS ABOUT READABLE FILES:
- Readable files: DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
- Acceptable Resolution: PCM up to 24bits/192kHz and DSD64 & 128.
- USB-A format: FAT32, NTFS, EXT2/3/4.

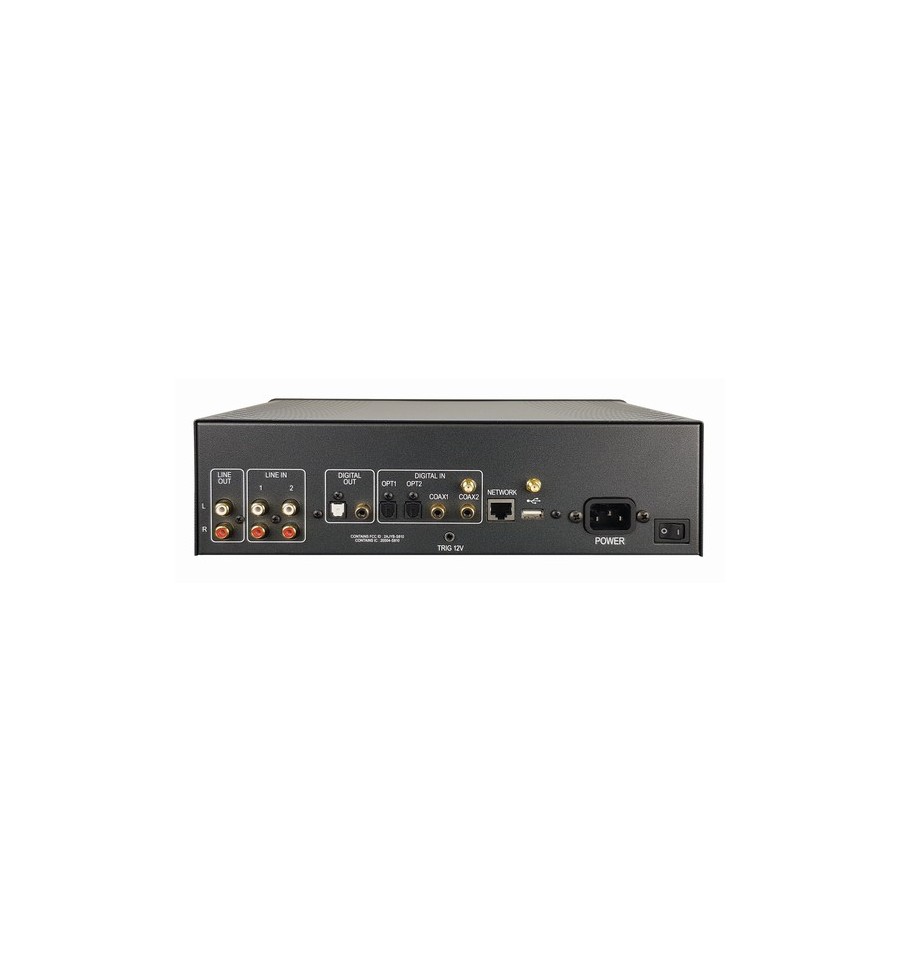

Connections:
2x USB-A inputs (1 front & 1 rear).
4x digital inputs:
- 2x coaxial S/PDIF (24 bits/192KHz)
- 2x optica S/PDIF (24 bits/192KHz)
1x Bluetooth® receiver
2x analog inputs
1x RJ45 network
1x Wifi antenna (802.11b/g/n)
1x pair RCA analog output
1x digital optical output
1x digital coaxial output
1x trigger 12V output
1x headphones output front (3,5mm)

TECHNICAL FACTS

- Audio supplies: 4,6VA + 3,6VA
- Total of capacitors: 5435 µF
- Dynamic: 123 dB
- Output Impedance: 22 Ohm
- Output level: 2,8 VRMS
- Signal/Noise ratio: 123 dB
- Distortion at 1kHz: 0,005%
- Bandwidth: 5Hz – 20kHz
- Rising Time: 1,7µs
- Converter digital/analog: Burr-Brown PCM1796 24 bits/192 kHz – DSD128
- Dimensions: 320x230x94mm
- Weight: 3 Kg
