The circuitry of the Limetree BRIDGE – designed around the powerful streaming platform – has been tuned for optimum signal quality. All music files are post-synchronized by an ultra precise FemtoClock. The data processed in this way are free from “jitter“, the most frequent cause of a poor digital playback quality. When output over the digital outs, the DSD data are automatically converted into high-resolution PCM data so that owners of older DACs can also enjoy high-res media of all kinds. With many older DACs the Limetree BRIDGE’s exceptionally low-jitter digital signal produces an audible increase in sound quality.

General

Power consumption: 0.1 W standby, 3.5 W operation, 8 W max.
Dimensions (W x H x D): 107 x 40 x 107 mm (4.2 x 1.6 x 4.2 in)
Weight: 300 g (0.66 lbs)
Power supply: 5V DC

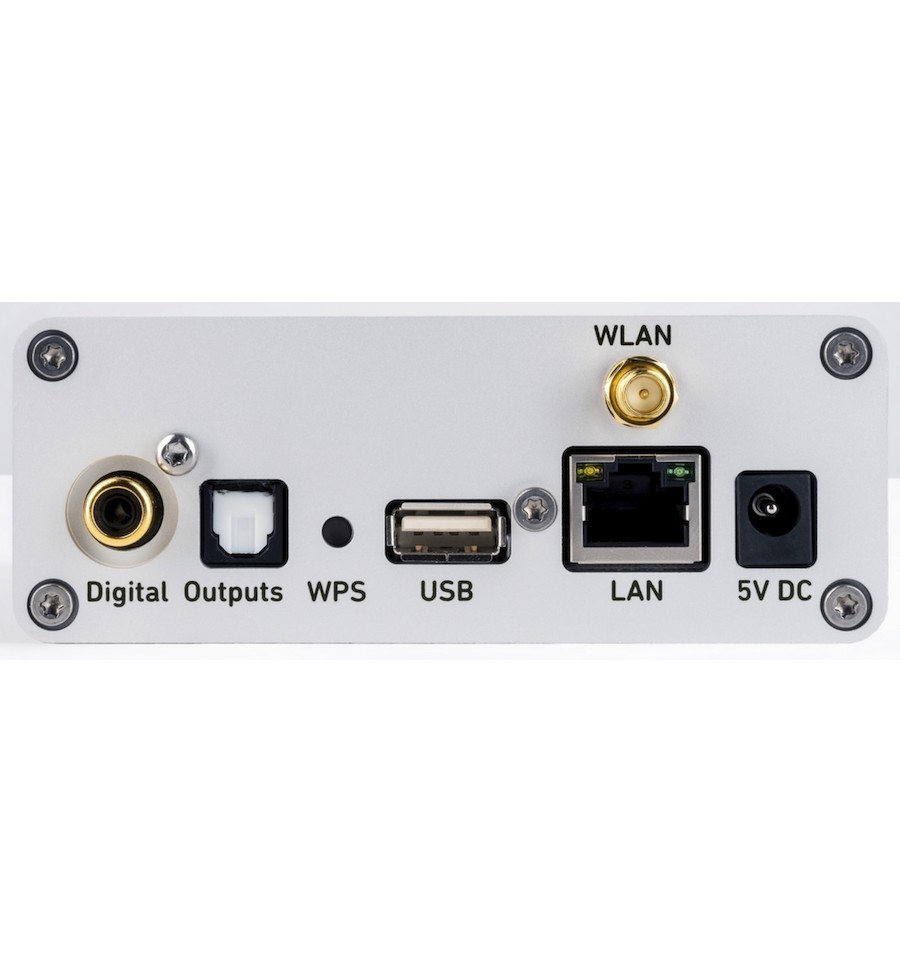

Digital outputs

RCA coaxial 75 ohms: max. resolution 192 kHz, 24 bit
TOS optical: max. resolution 192 kHz, 24 bit
Clock: Ultra low jitter MEMS FemtoClock
Mode 1: PCM is output as 88.2 kHz or 96 kHz, DSD is output as PCM 88.2 kHz
Mode 2: PCM is output as 176.4 kHz or 192 kHz, DSD is output as PCM 176.4 kHz
