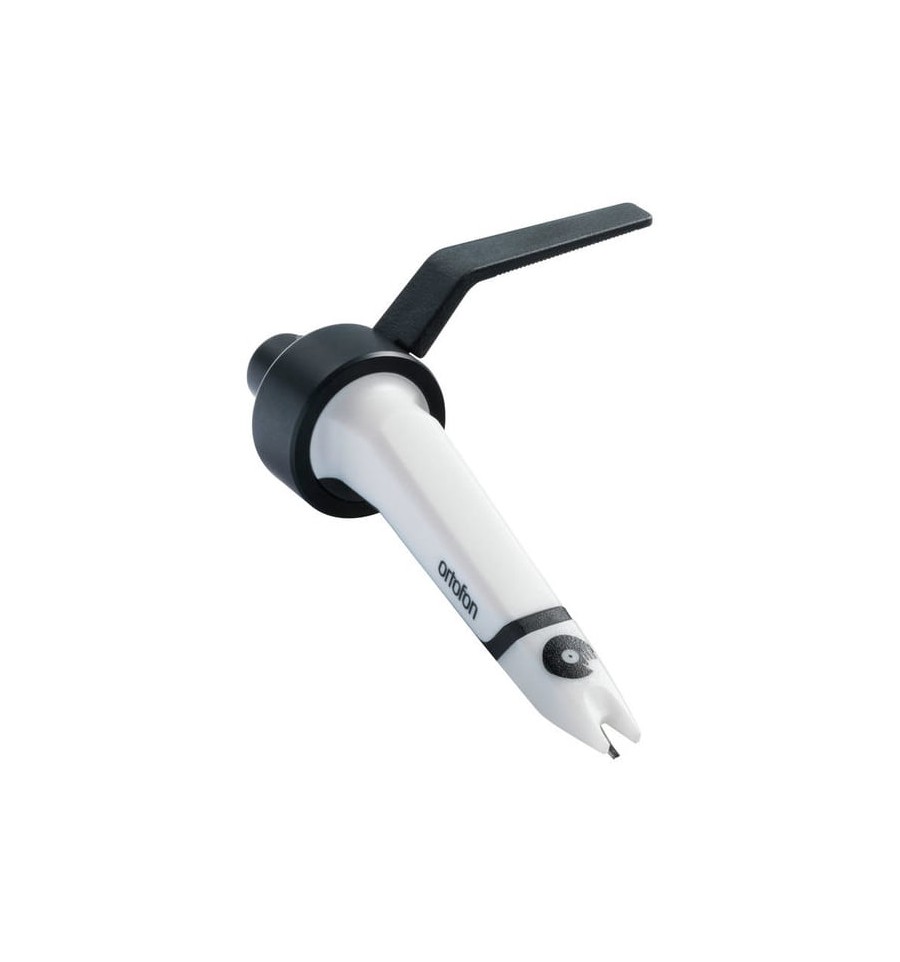

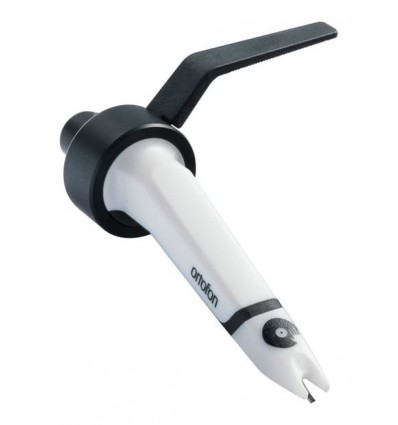

The Concorde Scratch allows turntablist and scratching DJs to achieve new levels of performance with an unprecedented tracking ability and extra high output.
• The SCRATCH is intended especially for scratching and back-cueing. The SCRATCH uses spherical styli, as they preserve more of the groove over backcueing and scratching.
• For DJs that require increased tracking ability, the SCRATCH is up to the task. The Scratch has a supreme ability to trace the grooves of the records and it is tailored specifically for scratch.
• Due to its very high output 10 mV, it is perfect for scratch of all music with deep bass frequences. With solid bass reproduction and extended highs, the SCRATCH is great for any style, providing energetic sound. Maximum scratch performance guaranteed!
Concorde SCRATCH technical data
- Stylus Type Spherical
- Tracking Force 4.0 g
- Output Voltage 10 mV
- Frequency Range 20-18.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 120 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance - 1200 Ohm
Internal inductance - 850 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-400 pF
Cartridge weight - 18,5 g
Replacement stylus unit - SCRATCH
