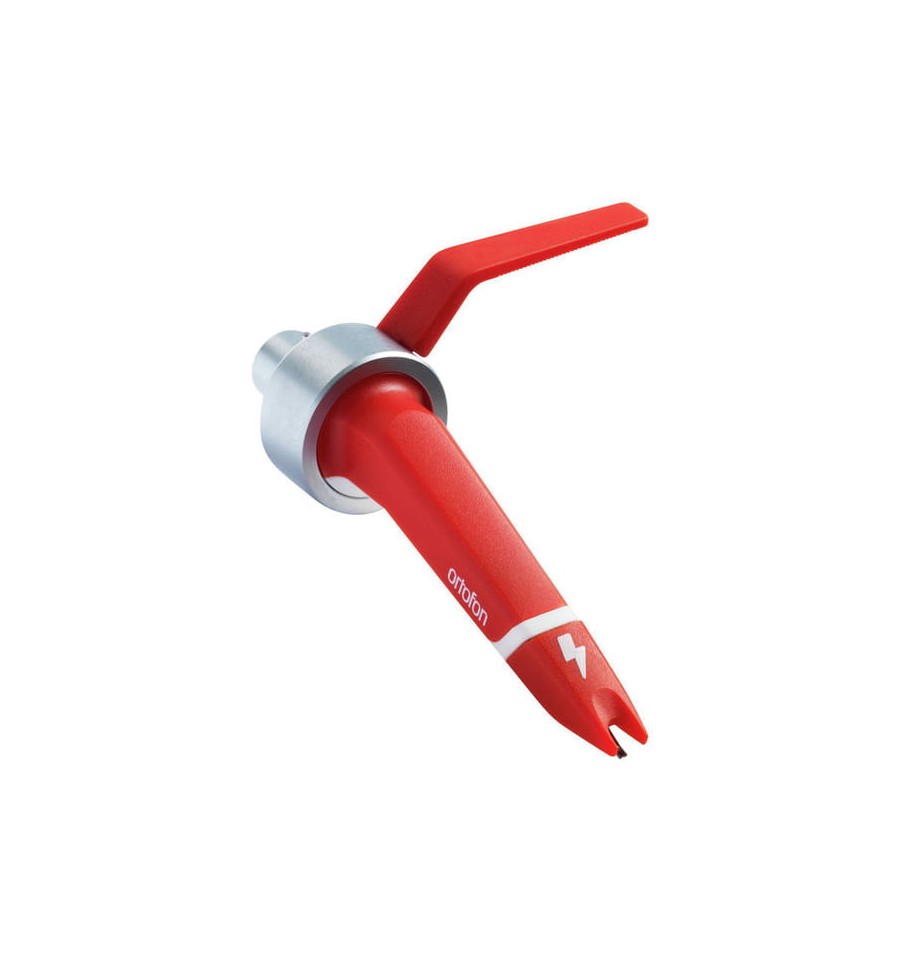

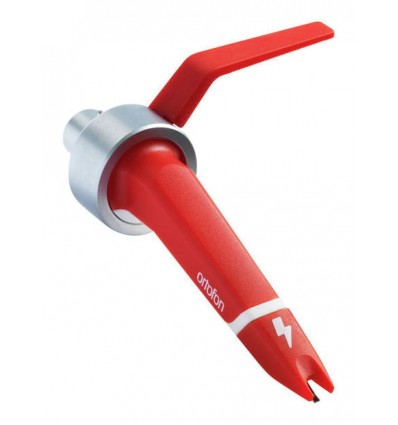

Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding
• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.
Concorde DIGITAL technical data
- Stylus Type Spherical
- Tracking Force 4.0 g
- Output Voltage 10 mV
- Frequency Range 20–18.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance - 1200 Ohm
Internal inductance - 850 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-400 pF
Cartridge weight - 18,5 g
Replacement stylus unit - DIGITAL
