MC

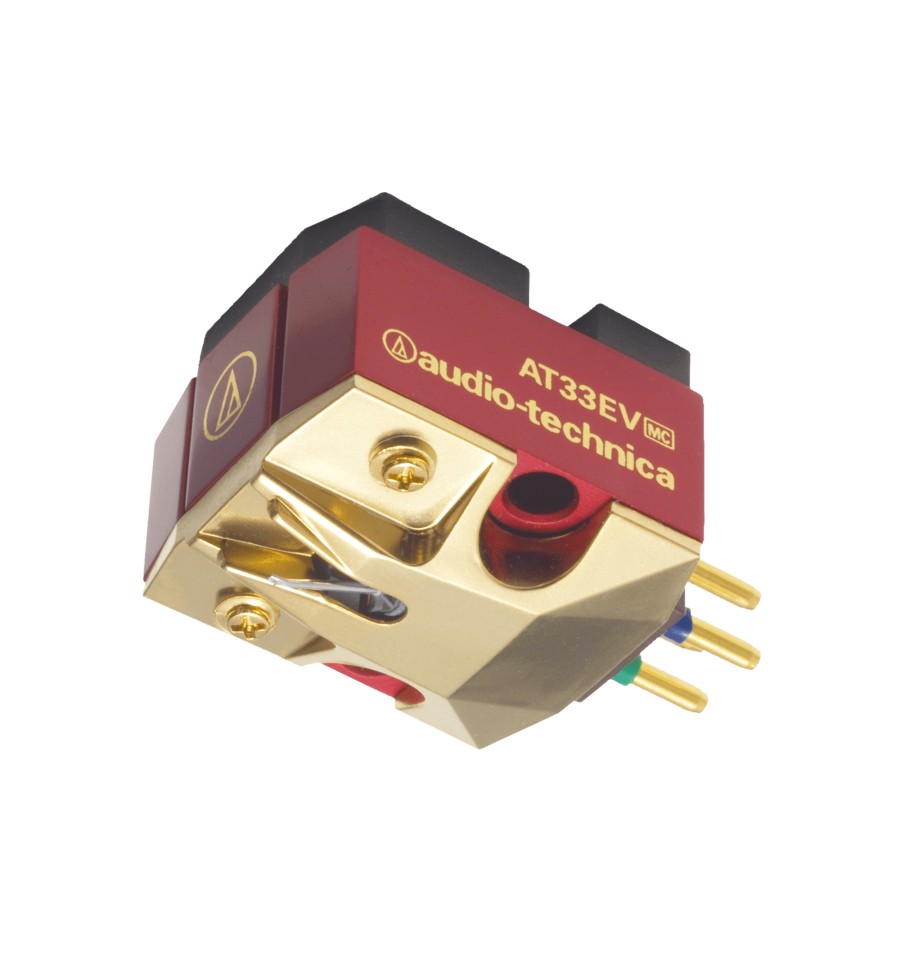

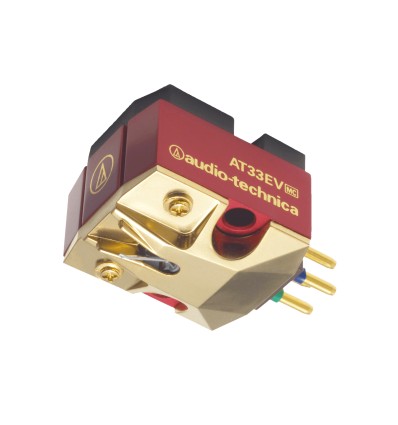

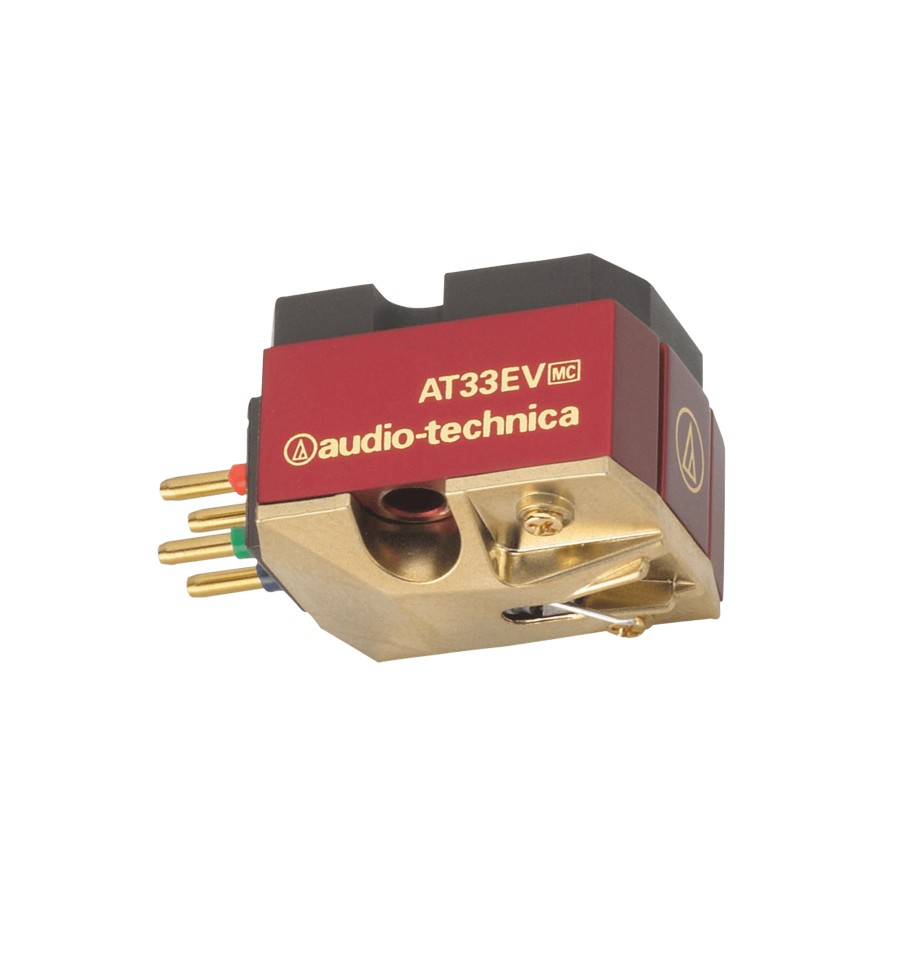

The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.
Varning: Sista varan i lager!
Tillgänglig efter datum:
Cartridge & Stylus | |
---|---|
Frequency Response | 15 - 50,000Hz |
Channel Separation | 30dB (1kHz) |
Vertical Tracking Angle | 23° |
Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
Stylus Construction | Nude Square Shank |
Recommended Load Impedance | More than 100Ω (when head amp connected) |
Coil Impedance | 10Ω (1kHz) |
DC Resistance | 10Ω |
Coil Inductance | 22µH (1kHz) |
Output Voltage | 0.3mV (1kHz and 3.54cm/sec.) |
Output Channel Balance | 0.5dB (1kHz) |
Stylus Shape | Elliptical |
Cantilever | Duralumin |
Static Compliance | 40×10-6cm/dyne |
Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
Mounting | 1/2" Centers |
Dimensions | H16×W16.6×D26.5mm |
Accessories Included | Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1 |
Body Material | Aluminium/Synthetic Resin |
Stylus Curvature Radius | 0.3 x 0.7 mil |
Terminal Pins | Brass |
Type | Dual Moving Coil |
Weight | 6.9g |
