Octave RE 320 Expand

Octave RE 320

Octave Octave

Ny

Rörslutsteg på 2x130 watt

KT 150-rör

Mer detaljer

125 000 kr

inkl.

Actually, it was obvious:

In the new RE 320, Octave’s SE-technology has been effectively implemented into a most astonishing compact stereo power amplifier - with resounding success!


The Octave RE 320 stereo power amplifier marks a significant evolution of this model series. The heart of the amplifier, the actual amplifier stage, is completely revised. Because for the first time the technical details of the Jubilee SE models have been utilized.


Together with a specially developed power supply for the SE-concept, as well as highly specialized, wideband transformers, the RE 320 can drive almost any speaker on the planet and always plays -unaffected by the load - at the same extremely high performance level.


This SE technology, previously implemented in the new Octave V 80 SE flagship integrated amplifier model, is characterized by significantly enhanced stability and extreme linearity.


As the experienced author Roland Kraft has carved out unambiguously in the review of the RE 320 in the German hifi magazine Stereoplay 03/2016: "We know very few tube amplifiers that are so uncritical in terms of speakers and therefore are able to unfold their sonic capabilities in virtually any combination.”(Please click here to access the complete review)

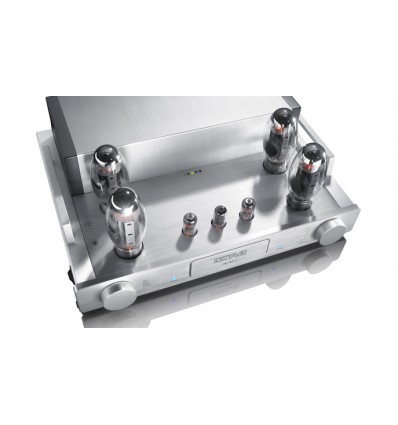

The concept is based on the modern KT150 power pentodes. The extremely high current of the KT150 allows a maximum output power of about 2 x 130 W with two tubes in push-pull mode.


The frequency range of the RE 320 extends from 5 Hz to 85 kHz. Looking to the impulse power, the 320 can achieve over 200 watts. This type of power delivery guarantees an inimitable sovereignty, with huge reserves while perfectly representing the effortless dynamics that distinguishes Octave.


A variety of modern and innovative detail solutions ensures a constant performance level that will last for years. Thus, for example, the noise level is so extremely low - by more than -110 dB, that even with high efficiency loudspeakers no hum or noise is heard.


Many practical features such as the precise adjustment of the BIAS, the power switch for different tube types, the intelligent ECO mode, the optional connection for the external black box modules and the switchable RCA and XLR inputs make the RE 320 stereo power amplifier a universal playback partner in this component category.

The RE 320 enchants with a sound that is stable and reliable at all loads. The ease of musical playback is particularly impressive and thanks to the incredible control the sound always remains composed, honest in its dimensions and conveys even the finest details with an irresistible naturalness.

Basic Model   Power Amplifier 2 x 130 Watt RMS
Tube Complement
KT 150, Driver Stage: 3 x ECC 82
Design

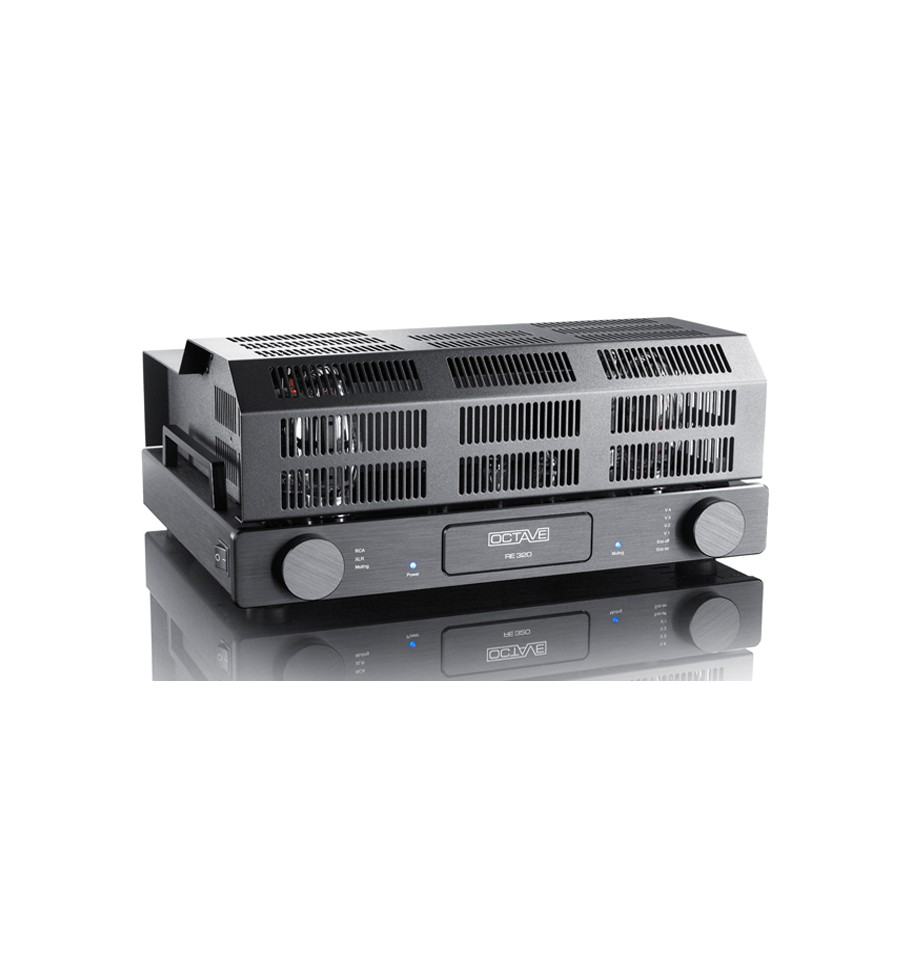

Aluminium silver or Aluminium black
Add On Modules

  Specifications
invi
  Output Power into 4 ohms
Power Selector High: 2 x 130 W RMS

invi

Power Selector Low: 2 x 75 W RMS

invi
  Peak Power into 4 ohms
Power Selector High: 200 W one channel
2 x 150 W both channels

invi

Power Selector Low: 140 W one channel

invi

Into 8-Ohms Load the Output Power
is reduced by 20%

invi
  Power Bandwith
25 Hz - 85 kHz / - 3dB at Full Power

invi

5 Hz - 85 kHz / -3dB at 5 W

invi
  Noise
< 100 µV 150 Hz - 15 kHz, > - 110 dB

invi
  Input Sensitivity
0,8 V RCA; 1,6 V XLR

invi
  Input Resistance
220 kOhm RCA; 20 kOhm XLR

invi
  CMRR of the XLR-Input
> 85dB / 1 kHz

invi
  Minimal Load Impedance
2 Ohm

invi
  Gain
+28dB - RCA

invi
  Eco Mode Trigger Level
0,5 mV

  Inputs
1 x RCA, 1 x XLR

invi
  Outputs
1 x Speaker terminal for 4 mm Banana connectors and spades

invi
  Features

ECO Mode, Bias Adjustment, Power Management


invi
  icon Download:
Owner's Manual

invi
  General Facts
invi
  Power Consumption
< 20 W in Ecomode, 180 W idle, 550 W at full power

invi
  Standard Accessory
Power Cord, 3 mm Screwdriver for BIAS Adjustment

invi
  Weight   27,6 kg
invi
  Dimensions (in mm)
invi

invi
invi
  Features
invi
invi invi

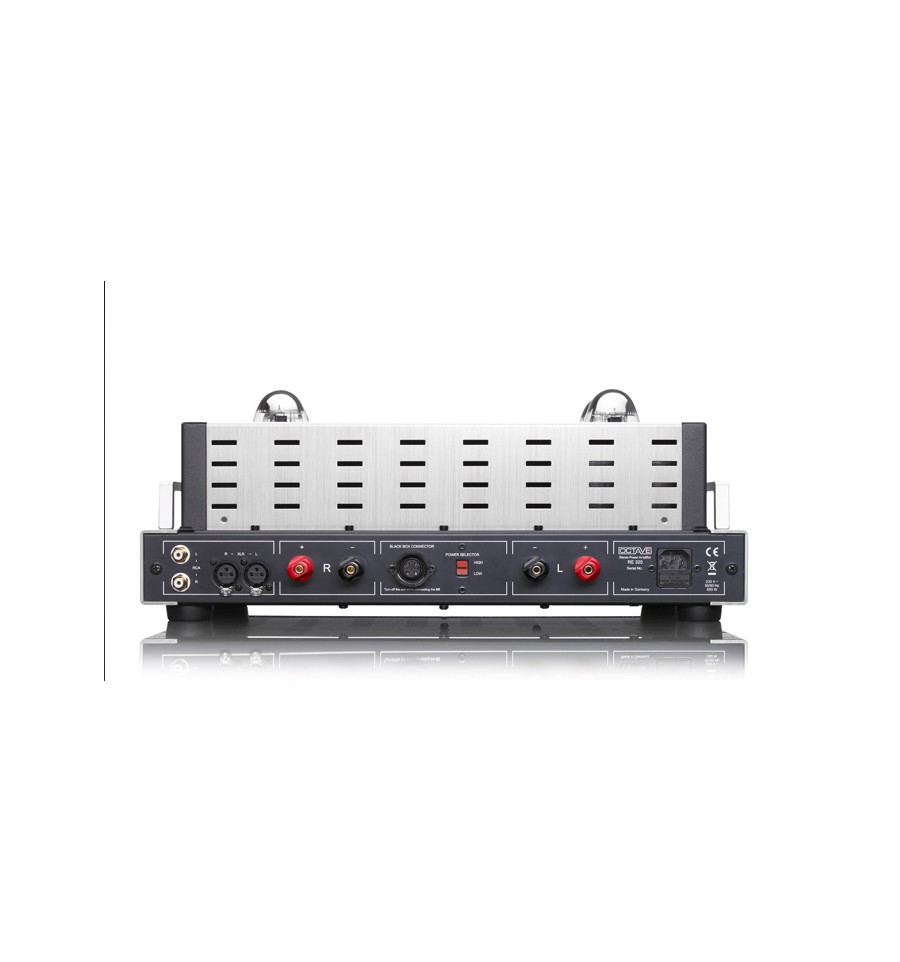

Black Box Connector

OCTAVE, with the Black Box technology, offers an upgrade path for optimizing the OCTAVE amplifier in respect to the speaker. This flexibility is a unique feature of the OCTAVE brand.

The dynamic and tonal stability of an amplifier is strongly dependent upon the stability and capacity of the power supply, therefore the Black Box and Super Black Box were developed as external upgrades to the OCTAVE amplifiers’ power supply storage capacitors by increasing their capacitance by a factor of 4 (Black Box) or 10 (Super Black Box), respectively. This is a tremendous benefit if the speaker is difficult to drive. Loudspeaker efficiency is made less critical, while the amplifier is enabled to handle speakers with extremely low minimum impedances.

BIAS Adjustment

The Output stage of the RE 320 operates in Class A/B, and therefore requires an adjustable BIAS regulation. The highly sophisticated yet extremely simple yet accurate BIAS calibration system is accessed on the front panel of the unit. It utilizes external precision bias trim pots and LED confirmation, allowing the user to readily monitor the output tubes and simply correct their bias individually at the top panel - without the need of a micrometer let alone any special knowledge or tools.

The correct BIAS is vital for the constant sound quality of the RE 320. Due to this facility there is no need for a technician to service the RE 320 for changing or tubes or to check their condition. The precision of this user friendly system is within 0.5% accuracy.

Power Management and Protection System

The RE 320 is equipped with a multi-stage Soft-Start/Turn-On protection circuit which extends component as well as tube life considerably by protecting against stress caused by typical high inrush currents during switch-on. The unit starts in a defined sequence, with the Protection System monitoring the RE 320 completely, and activated whenever a malfunction is detected. Once the Protection is activated, the RE 320 is powered down.





Power Bandwidth:

invi invi
invi invi

  Power bandwidth of both positions of the power selector. The maximum output power of 130 W in position "high" and 75 W in position "Low" is constant in the range from 25 Hz up to 30 kHz.
