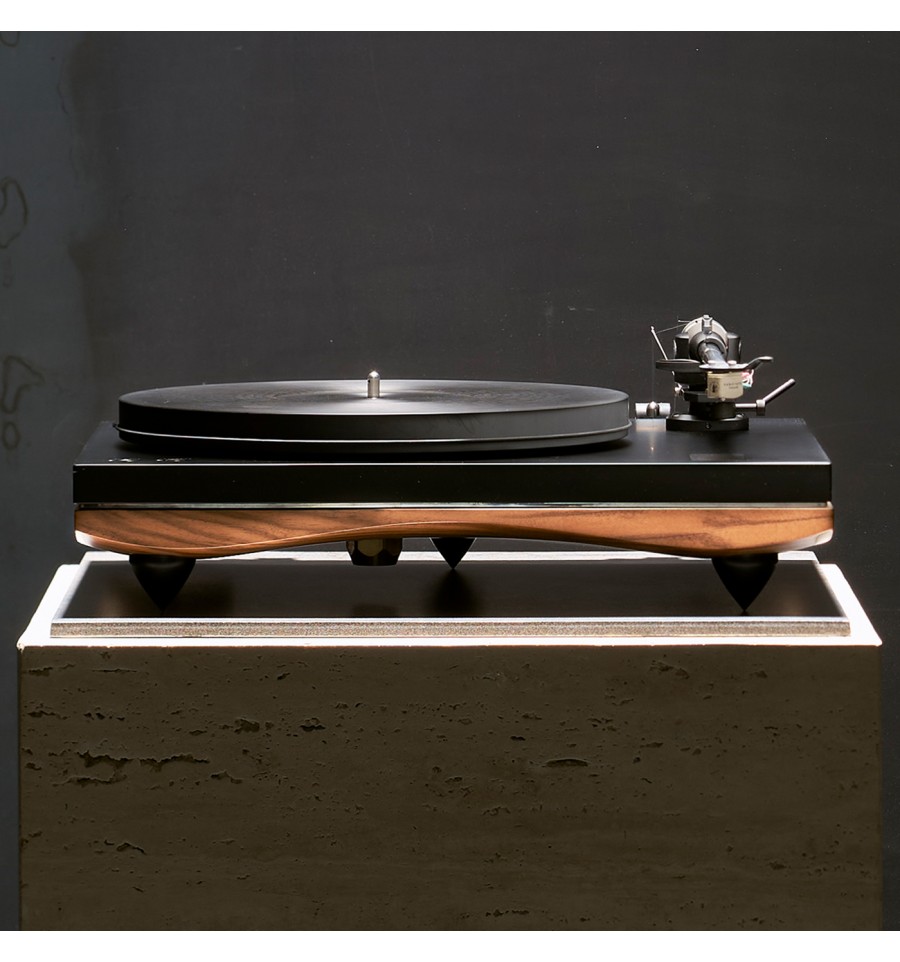

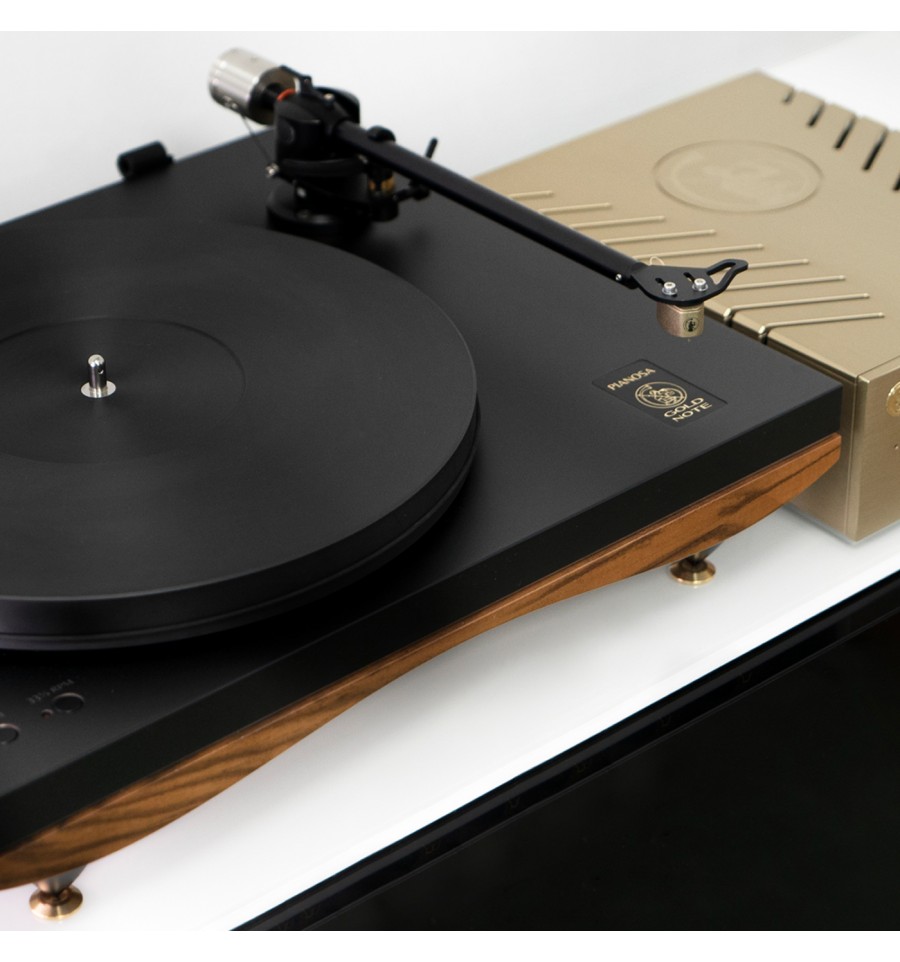

Pianosa’s philosophy reflects the entire range of Gold Note turntables: innovative shapes and materials of the highest quality in service of the best sound experience. The lower plinth, whose shape is inspired by the catenary curve, is available in walnut wood or black lacquered MDF and is handmade by the best Italian craftsmen: every single piece is carefully selected and carefully worked in a crucial working process thanks to which the “heart” of each turntable takes shape. The upper plinth is produced in black lacquered MDF, 20 mm thick and reinforced by a 3 mm stainless steel plate, which guarantees its rigidity. The result is an audio performance that exceeds all expectations.

The 12V synchronous motor control system and materials chosen for Pianosa are directly derived from the top-of-the-line Gold Note models. The result is a device that eliminates vibrations while reproducing the smallest details and excellent dynamic response. Pianosa features a high-precision pivot system with very low tolerance to minimize friction during operation. The tempered steel platter spindle perfectly mates with the chrome steel ball bearing, achieving perfect rotation fluidity and low noise.

MAIN FEATURES

WOW & FLUTTER - 0.1%

RUMBLE -77db

SPEED - 33⅓rpm and 45rpm ±0,1%

SPEED CHANGING - Electronic with fine pitch control

TRANSMISSION - 70 shores rectified NBR belt

MOTOR - high torque 12V synchronous

PLATTER - 23mm Dampened Poly-Vinyl

PLATTER SPINDLE - Split-Spindle™ clamping design

PLATTER BEARING - Chromed Steel 5mm ball bearing

TONEARM - Gold Note B-5.1

DUST COVER - Transparent with hinges

DIMENSIONS - 425mm W | 170mm H | 360mm D

                      550mm W | 480mm H | 480mm D – boxed

WEIGHT - Kg. 13,5 – net

               Kg. 18 – boxed

EXTERNAL POWER SUPPLY - PST-10 external inductive power supply for turntables
