Vitus SM-103 mk.II Monarual Power Amplifier Expand

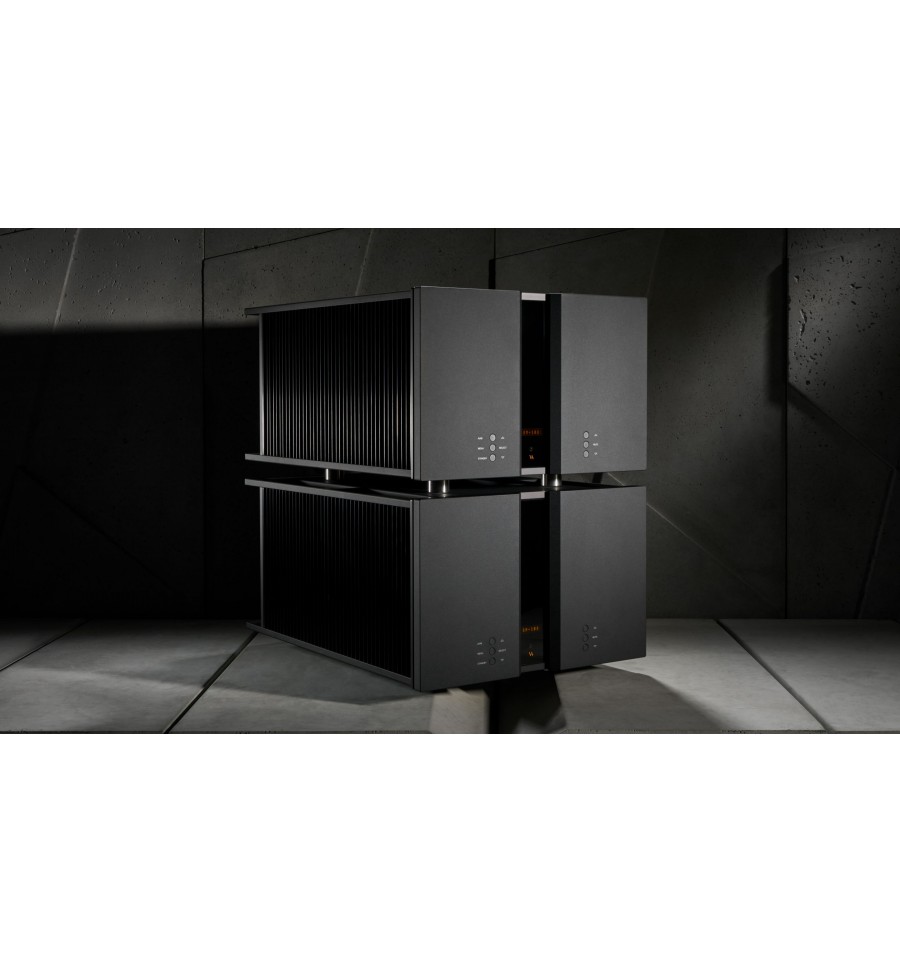

Vitus SM-103 mk.II Monarual Power Amplifier

Vitus Audio Vitus Audio

Ny

Monoblock i Signature-serien.

Topptestade i The Absolute Sound tillsammans med försteget SL-103.

Pris per par.

Mer detaljer

850 000 kr

inkl.

Läs det översvallande positiva testet från Jonathan Valin - The Absolute Sound.

Klika här för att ladda ner testet i PDF-format.

SM-103 MK.II MONAURAL POWER AMPLIFIER

With a completely no-compromise design, the SM-103 Mk.II can take on the very finest products from around the world, regardless of their cost. Based on the SS-103, each SM-103 Mk.II uses only the finest matched transistors and super precision resistors to ensure optimal working conditions for the different stages of each module.

A LONG HISTORY OF EXCELLENCE

The SM-100 was the very first power amplifier to come out of the Vitus Audio design studio. A true balanced amplifier that changed the marketplace and made clear what a monaural power amplifier should provide to the user. The initial design was housed in two chassis but we always intended to create a four chassis system to separate power circuitry from audio circuitry.

The development of the MP-M201 saw this dream become a reality and we took the development leaps forward made with that amp and the amazing advancements made in the SS-103 into the SM-103 creating a powerhouse that will astonish with micro detail and resolution.

NO COMPROMISE

With a completely no-compromise design, the SM-103 Mk.II can take on the very finest products from around the world, regardless of their cost. Based on the SS-103, each SM-103 Mk.II uses only the finest matched transistors and super precision resistors to ensure optimal working conditions for the different stages of each module.

This amplifier redefines how close you can get to a live performance experience from your recordings. With future upgradability a given thanks to their internal modular design, this is an amplifier that will bring joy for many decades to come.

TECHNICAL SPECIFICATIONS

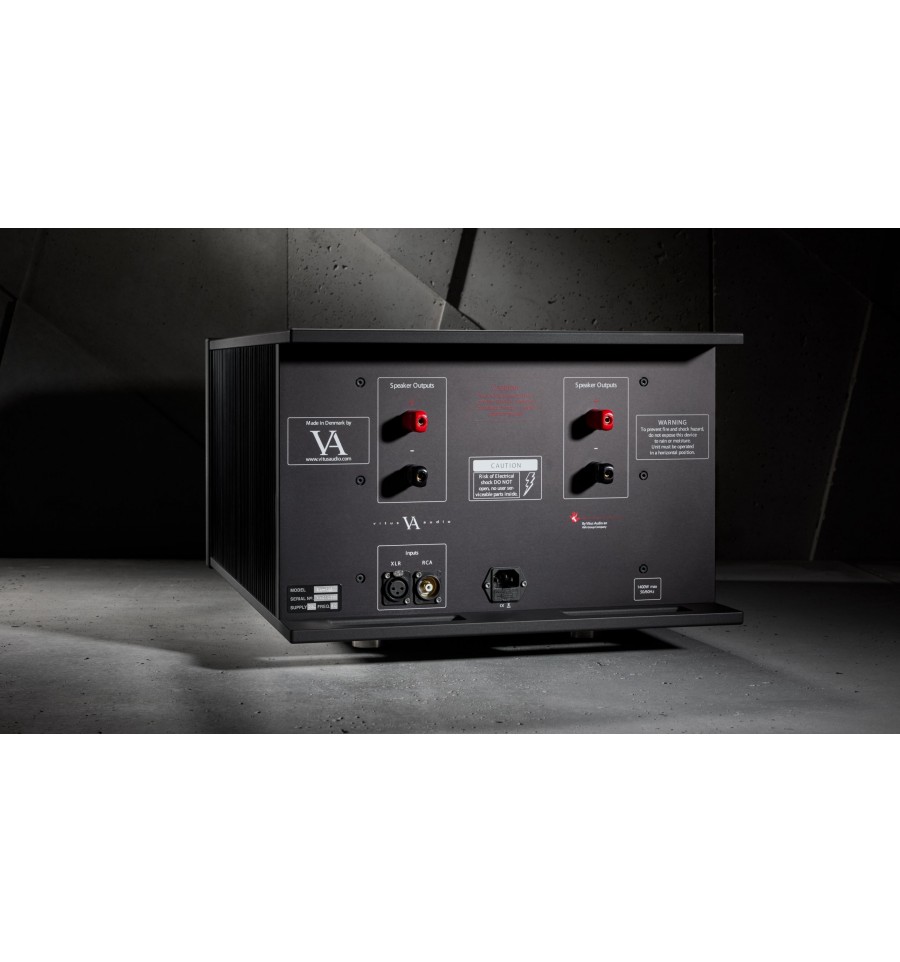

INPUT (EACH)XLR ANALOGUERCA ANALOGUE
Available 1 1
Sensitivity 2 VRMS 2 VRMS
Impedance 10kΩ 10kΩ
OUTPUT (EACH CH.)SPEAKER
Available 2 set for bi-wiring
Impedance 0.075Ω
Power WRMS (8Ω) ~100W Class A / ~100W Class AB
Power WRMS (4Ω) ~200W Class A / ~200W Class AB
Bandwidth +800kHz
Signal to noise ratio >100dB @ 1kHz
THD + noise <0.01%
POWER CONSUMPTION
Standby <1W
Class AB 126W
Class A 215W
DIMENSIONS (EACH)
Height 310mm including feet
Width 435mm
Depth 601mm
Weight 75kg

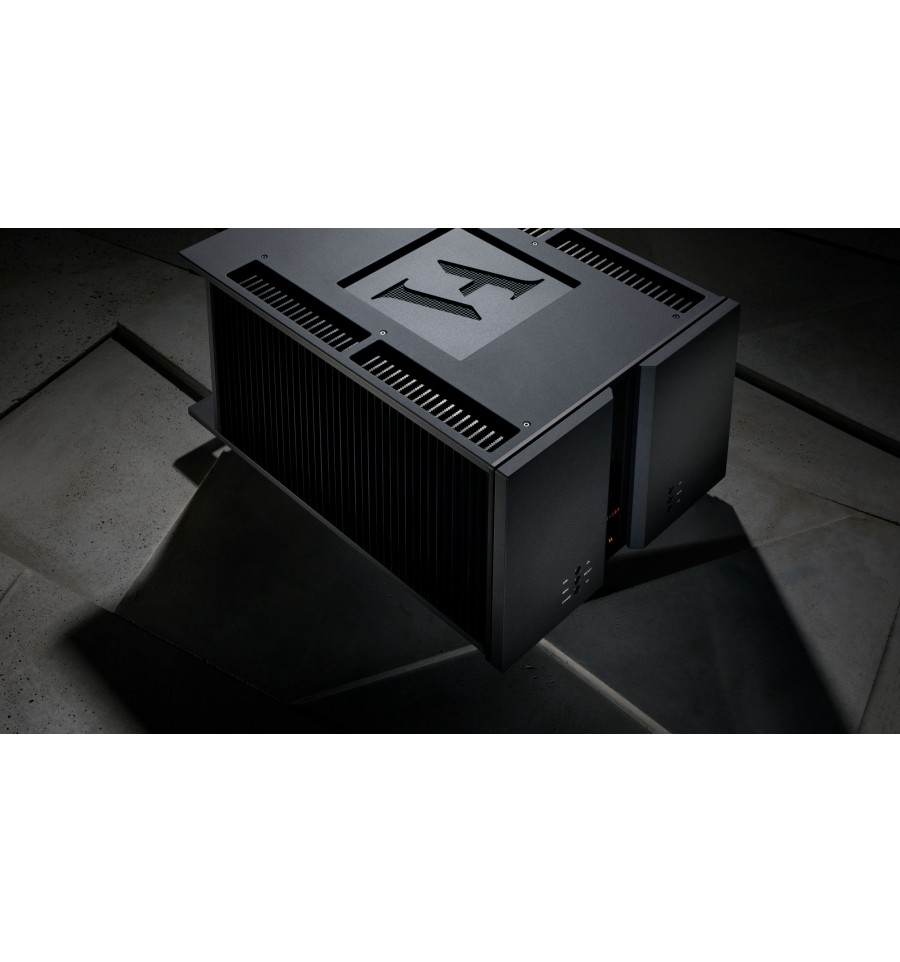

Material Aluminium for body parts and heat sinks
