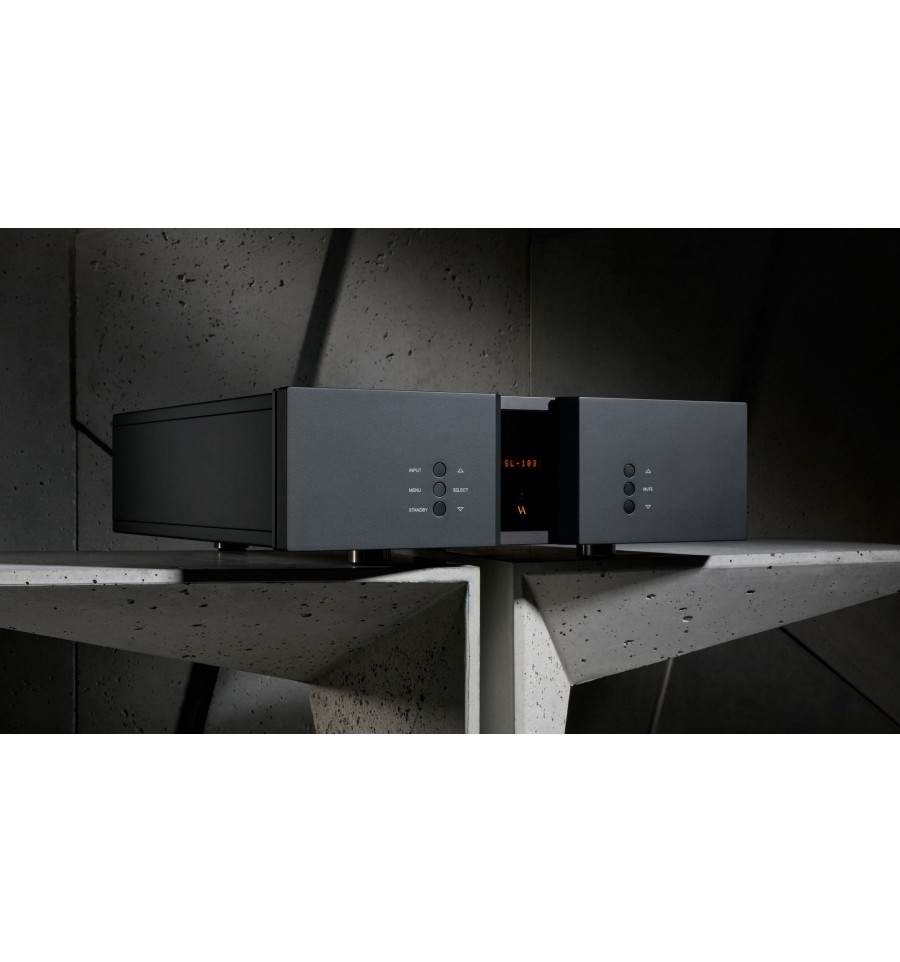

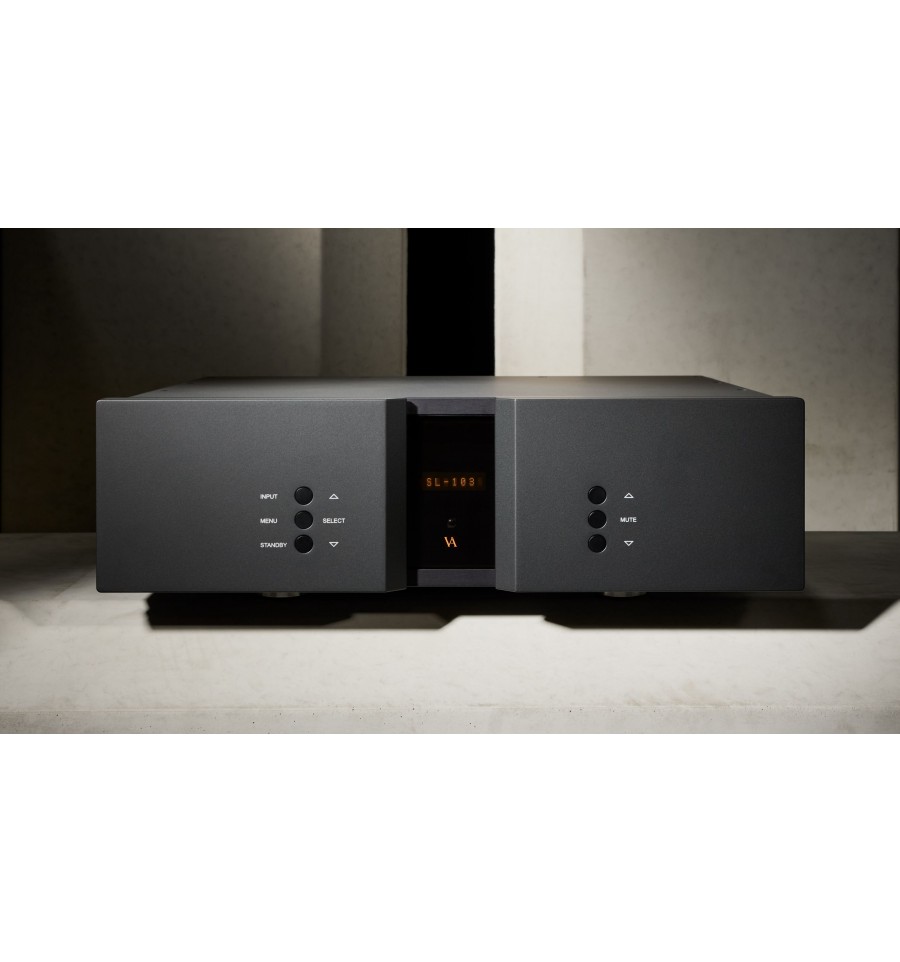

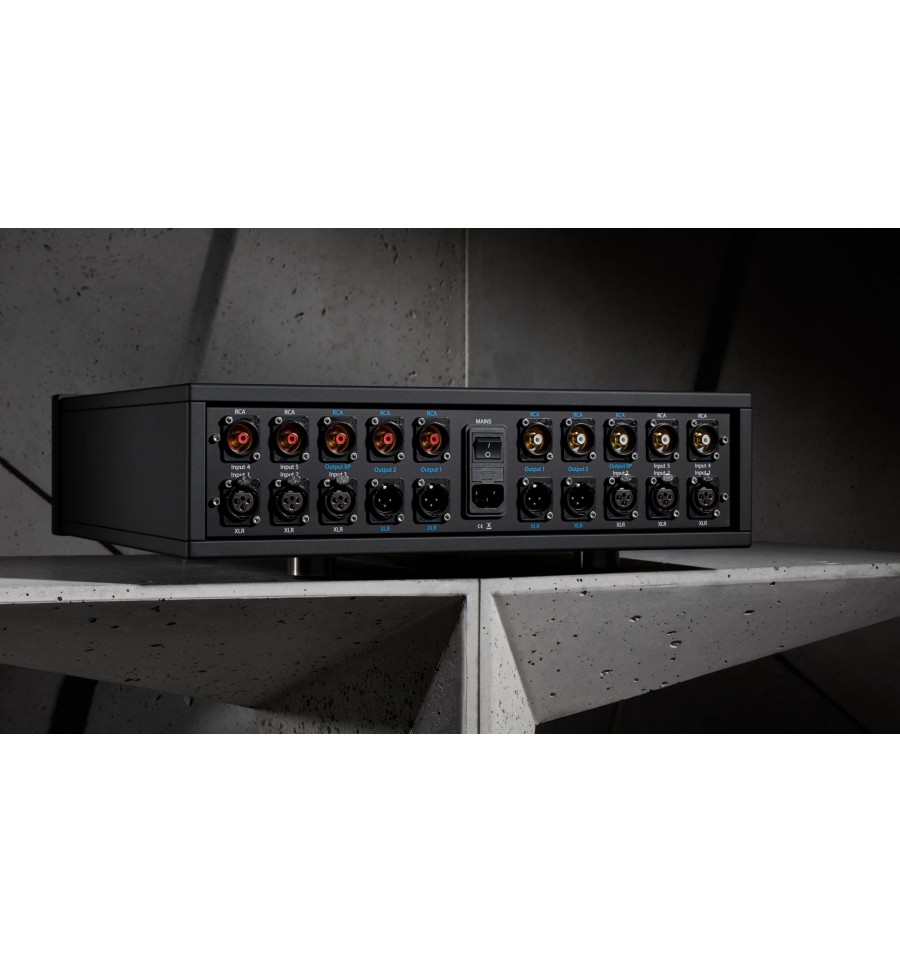

SL-103 LINE STAGE
The original SL-100 was launched at CES in January of 2004 and this lineage in the Signature Series has been a firm favourite with audiophiles ever since. This current iteration pairs perfectly with our SM-011 Monaural Power Amplifiers to create a system to satisfy the most demanding cravings for musicality and performance.
THE METICULOUS PURSUIT OF THE MIRACULOUS
It’s a recurring story at Vitus Audio: After much cautious and painstaking consideration, we will make a critical change to one product which then has unforeseen implications, enabling us to make significant improvements to other items in our range.
In 2010 we made some transformational improvements to our SL-101 line stage model, inspired by the fundamental innovations inherent in the design of the Masterpiece Series MP-P201. We increased the number of regulation levels in the power supply and added more volume steps to accommodate higher resolution in the attenuation.
A LINE STAGE WITH PEDIGREE
The original SL-100 was launched at CES in January of 2004 and this lineage in the Signature Series has been a firm favourite with audiophiles ever since. This current iteration pairs perfectly with our SM-011 Monaural Power Amplifiers to create a system to satisfy the most demanding cravings for musicality and performance.
TECHNICAL SPECIFICATIONS
INPUT | XLR ANALOGUE | RCA ANALOGUE | OPTIONS |
---|---|---|---|
Available | 3 (L+R) | 2 (L+R) | Customisable at order |
Sensitivity | 2/4/8 VRMS | 2/4/8 VRMS | |
Impedance | 10kΩ | 10kΩ |
OUTPUT | XLR ANALOGUE | RCA ANALOGUE | TAPE OUT |
---|---|---|---|
Available | 2 (L+R) | 2 (L+R) | 1 (L+R) |
Impedance | 80Ω | 80Ω | 75Ω |
Frequency response | +800kHz | +800kHz | |
Signal to noise ratio | >110dB @ 1kHz | >110dB @ 1kHz | |
THD + noise | <0.01% @ 1kHz | <0.01% @ 1kHz |
POWER CONSUMPTION | |
---|---|
Standby | <1W |
Operation | ~45W |
VOLUME CONTROL | |
---|---|
Type | Relay controlled fixed resistor network |
Gain | -90dB to +18dB in 0.5dB steps |
DIMENSIONS | |
---|---|
Height | 135mm including feet |
Width | 435mm |
Depth | 428mm |
Weight | 25kg |
Material | Aluminium for body parts |
