- Improving low frequency response
- Flutter echo control
- Specular reflection control
- Enlarging sweet spot

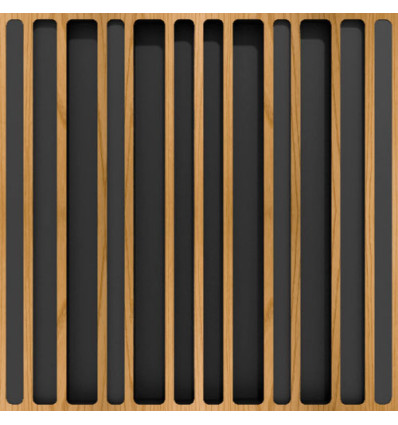

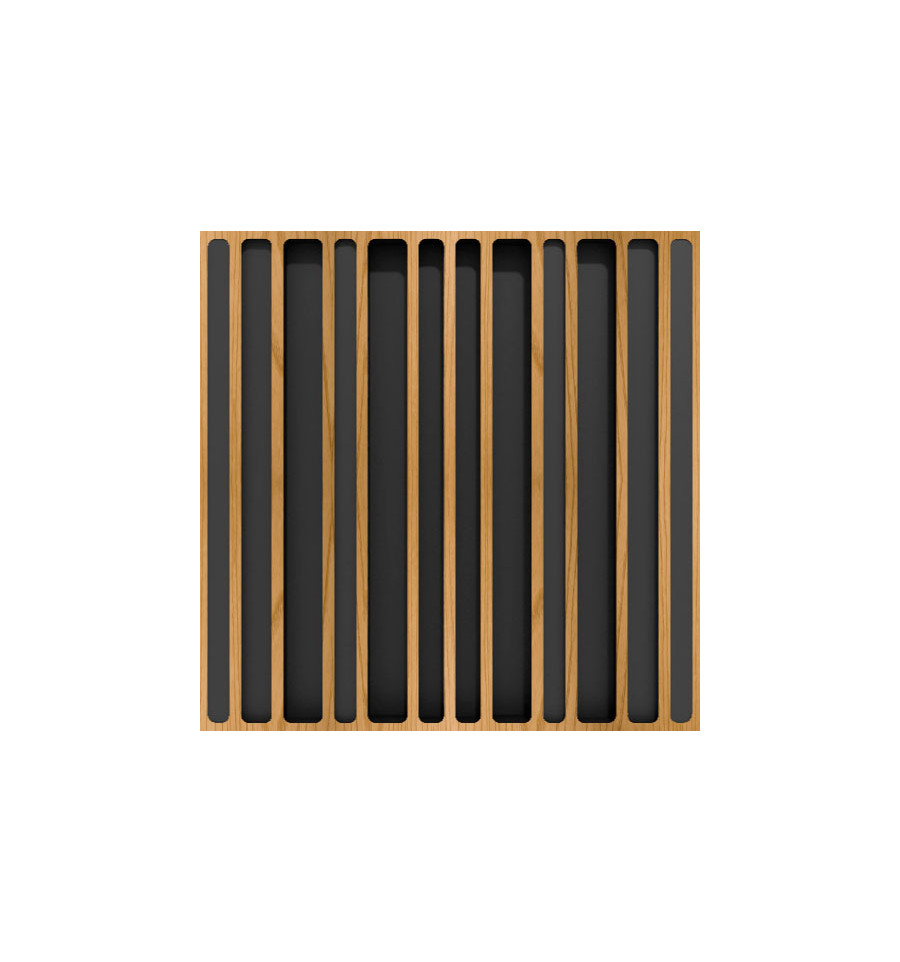

Lagos is the result of extensive research into diffusion techniques – it is based on a traditional QRD diffuser, but combine varying widths with each cell depth, overcoming some of the limitations of the standard QRD diffuser.
The phase grating surface of the diffuser is designed to provide a more uniform sound field through mid-high frequency diffusion. The well depths are individually tuned to enhance performance at certain frequencies, essentially increasing the effective range of the panel, without compromising the overall linear response – Lagos performs 15-20% lower with a linear frequency response.
The panels’ semi-cylindrical response pattern makes it the perfect solution for multichannel rooms and can easily be installed in specific arrays to provide 2D diffusion. Lagos is available in both wood and fabric finishes, making it a versatile solution to match your performance and design requirements.
Performance
Scattering coefficient / Diffusion coefficient / Absorption Coefficient
Perfect diffusion control.
Recommended for
- Hi-Fi Listening Room
- Media Room
- Home Cinema
Why use diffusion?
Diffuser panels scattering incoming sound waves into smaller, lower energy waves, scattered over a large area. These scattered reflections create a homogeneous sound field distribution and a full, balanced acoustic response. This improves speech intelligibility, music quality, and creates a more uniform, larger sweet spot.
This product is available in the following Fire Rate:
FG | Furniture Grade
_______
PRODUCT COMPOSITION:
Lagos W | Natural wood veneer (FG)
- Natural wood veneer
- HMDF and plywood structure
Lagos W | Lacquered HMDF (FG)
- Lacquered HMDF
- HMDF and plywood structure
_______
Dimensions:
Lagos W | 595x595x60mm
Integrated Fixing System
This panel can be rotated 90º to any orientation
Lagos is designed to be used with other Artnovion products, with the same thickness as our standard absorbers once installed. Lagos is hung on screws, and can be installed on any surface, in any orientation.
