AUDIO ANALOGUE MAESTRO ANNIVERSARY

Audio Analogue Audio Analogue

Ny

Helt underbar förstärkare som verkligen fångar essensen i musiken. Handbyggd i Italien!

Zero feedback.

Helt balanserad.

Dual mono rakt igenom.

Finns även med förbättrat volymrelä (relays & resistors). Det kostar en slant mer men... mamma mia!

Mer detaljer

112 000 kr

inkl.

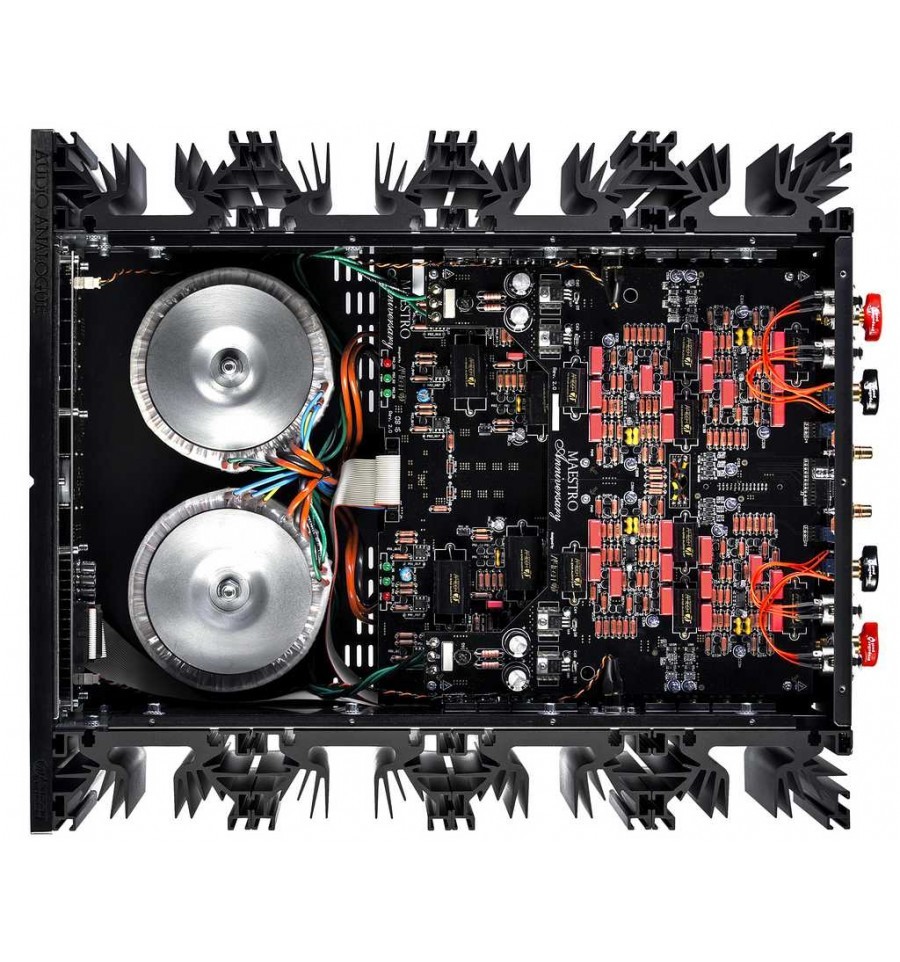

The whole amplifier is designed as if it made of three separate elements.

1- Power supply: made with a 600VA transformer for each channel. The bridge rectifier is made with ultra-fast discrete diodes of 50 A each. The filtering capacity is 16800µF per branch so the amplifier has a total of 67200 µf filter. At switch-on the current is limited by resistors variable with the temperature that after swoth-on are excluded from the signal path.2- Amplifier: fully dual-mono also for ground connections and power supplies. The digital stages to control the volume chips are also optocoupled. The PCB copper tracks have a thickness double the standard to ensure the passage of large currents. The PCB routing has long been studied to optimize the signal paths and maintain the symmetry of the stages.3- Preamplifier: as for the amps, the preamp stages are dual-mono. Immediately behind the input connectors were placed the channel switching relays followed by a discrete component buffer to isolate the amplifier from the source. The maximum acceptable input voltage is about 6VRMS. The buffers, balanced on both inputs and outputs, drive in class A the four chips (for each channel) of volume. The latter, as in the case of the Puccini are simply strings of resistances without any operational in them. This choice was made to not have any kind of global feedback inside the Maestro. After the volume control we have the real preamp stage that amplifies up to about 12db.

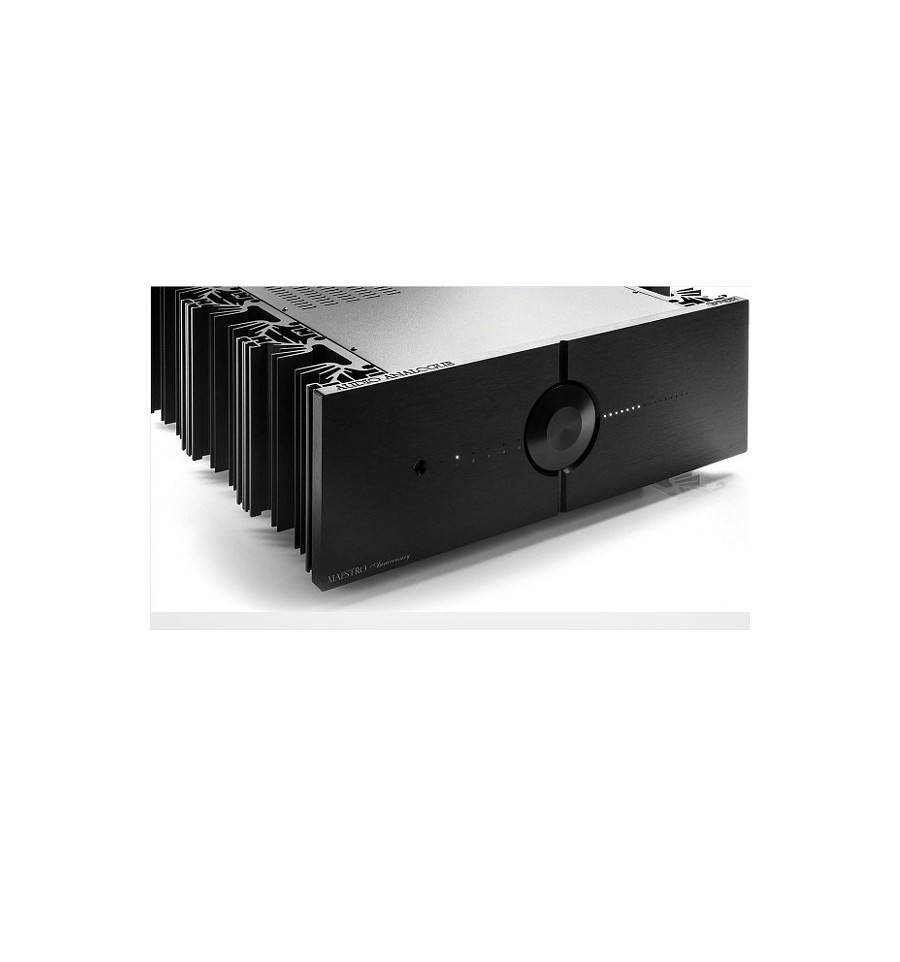

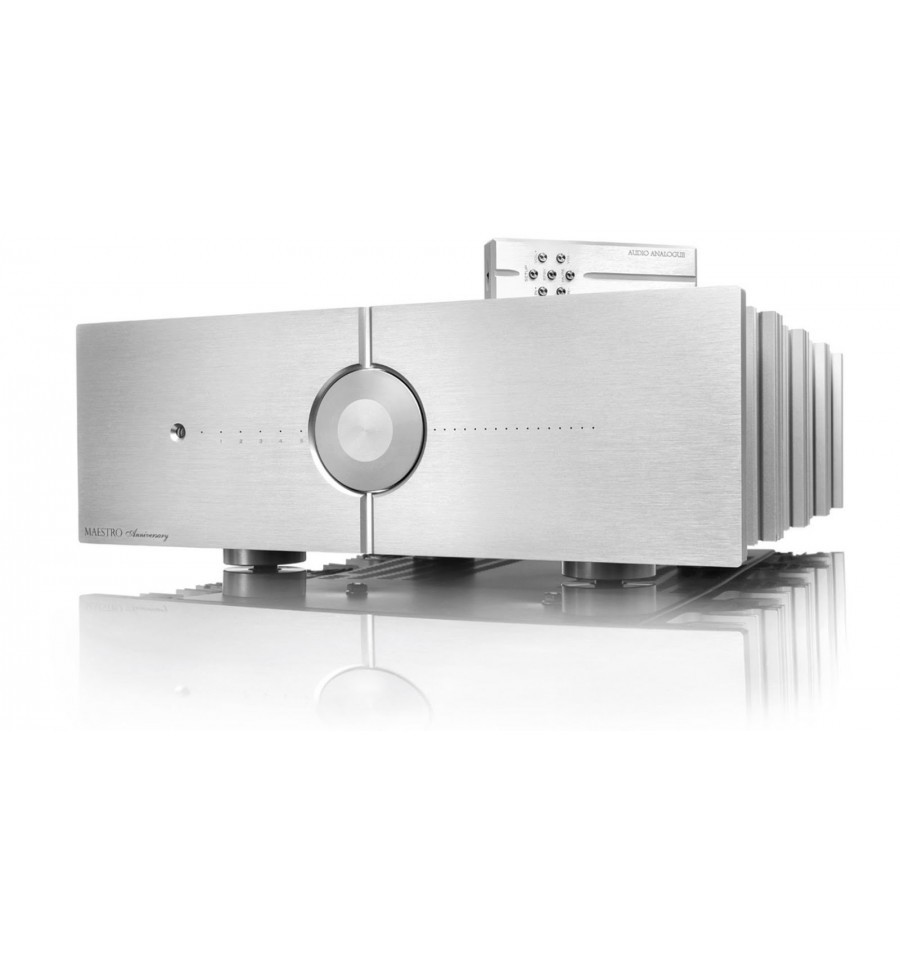

The three elements described above are physically housed on three separate boards so it’s like having a separate power supply, preamp and power amp.The Maestro Anniversary is also available in RR version with analog volume attenuation based on relays and resistors for a further increase in sound performance.Available in natural aluminium and satin black.

The Maestro Anniversary was born in AIRTECH laboratories
following the experience gained with the development of the Puccini
Anniversary. The basic scheme is very similar, but with one important
difference: the amplification chain is completely balanced by the
input to the power stage, which is again unbalanced to connect to
the speakers. This resulted in a doubling of the amplification and
attenuation stages.
Even in the Master Anniversary all stages are zero global feedback.
Feedback is also not used in preamp stages (as in the Puccini). The
output power has been increased to 150W on 8Ω resulting in the
downsizing of all driver and power stages that now use four
transistor pairs per channel. However, the basic configuration
remains as inverted cascode that is similar to a single gain stage
followed by the output buffer.
The working point stability is maintained through a DC Servo that
begins to work only at frequencies lower than a few tenths of Hertz
(therefore totally out of the audio band). Such a refined circuitry,
together with the selection of high quality components (military
standard resistors, polypropylene audiograde capacitors made
under AIRTECH specification, internal wiring with 7N OCC pure
copper, pure copper gold plated output connectiors) helped to
create a device that has the honor of being the heir of the glorious
Maestro Integrated.
The Maestro Anniversary is a unique device, its remarkable power
that always doubles as the impedance decreases and its
extraordinary driving skills, are accompanied by a unique musicality
and refinement and not easy to find in a so "muscular" amplifier.

Maestro Anniversary was born in AIRTECH's laboratories following to the experience gained with the development of Puccini Anniversary. The basic scheme is very similar, but with one important difference: the amplification chain is fully balanced from the input to the power stage which becomes unbalanced to connect to the speakers. This took to a doubling of amplifier stages and attenuation. Also in the Maestro Anniversary all stages are without global feedback. The feedback is not even used on preamp stage(as in Puccini). The output power was increased to 150W on 8Ω with the consequent adjustment of all the driver and power stages that now use four pairs of transistors per channel. The basic configuration remains inverted cascode that is comparable to a single gain stage followed by the output buffer. The stability of the working point is maintained through a DC Servo that begins to work only at frequencies below a few tenths of Hertz (then totally out of the audio band). Thanks to a so refined circuitry, along with the selection of components of the highest level (military standard resistors, polypropylene audiograde capacitors custom made for AIRTECH, internal wiring with 7N OCC copper and pure copper output connectors) helped to create an amplifier that has the honor of being the heir of the glorious Maestro Integrated and therefore fully joins the Anniversary line celebrating at the same time, the first 20 years of Audio Analogue, but also 15 years by the introduction of AUDIO ANALOGUE's first product to bear the Maestro name. The new Maestro Anniversary is a unique amplifier, its remarkable power that always doubles with decreasing impedance and its extraordinary driving skills, are accompanied by a unique musicality and refinement not common for so “muscular” amps. Unfortunately it is not easy to express in words all its peculiarities and therefore we invite you to listen to it as soon as possible and can only confirm that now more than ever MUSICA MAESTRO!!

Technical description
The amplifier is fully thought of as composed of three separate elements. 1. Power. It 'made with a 600VA transformer for each channel. The rectifier bridge is realized with discrete diodes ultrafast 50A each. The filtering capacity is 16800μF by branch so the amplifier has a total filter of 67200μF. At the switching on, the inrush current is limited by resistors variable with the temperatures that after the powering are excluded from the signal path. 2. Amplifier. There are two amplifiers (right channel and left channel) totally separated each another both as ground, as power supply stages connections. They have no common link. Even the digital commands for the control of volume chip are optically isolated. It's real a dual mono configuration. The copper footprints of the PCB have a double thickness compared to the standard to ensure the passage of large currents involved. The routing of the PCB has long been studied to optimize the signal paths and maintain the symmetry of the stages. 3. Preamplifier. Just like the power amp circuits also preamplifiers are dual mono. Immediately behind the input connectors there are relays for the channels switching followed by a discrete components buffer, to isolate the amplifier from the source. The maximum acceptable input voltage is approximately of 6VRMS. The buffers, both balanced as for the inputs as for the outputs, ranging for driving in class A the four(for each channel) volume chips. The latter, as in the case of the Puccini are simply strings of resistors without any operational inside them. This choice was made to not have any kind of global feedback within the Maestro. After the volume control stage we have the real preamp that amplifies up to about 12dB. The three elements described above are physically housed on three separate boards so it's like having a power supply, a preamplifier and a separate power amp.
Technical features:

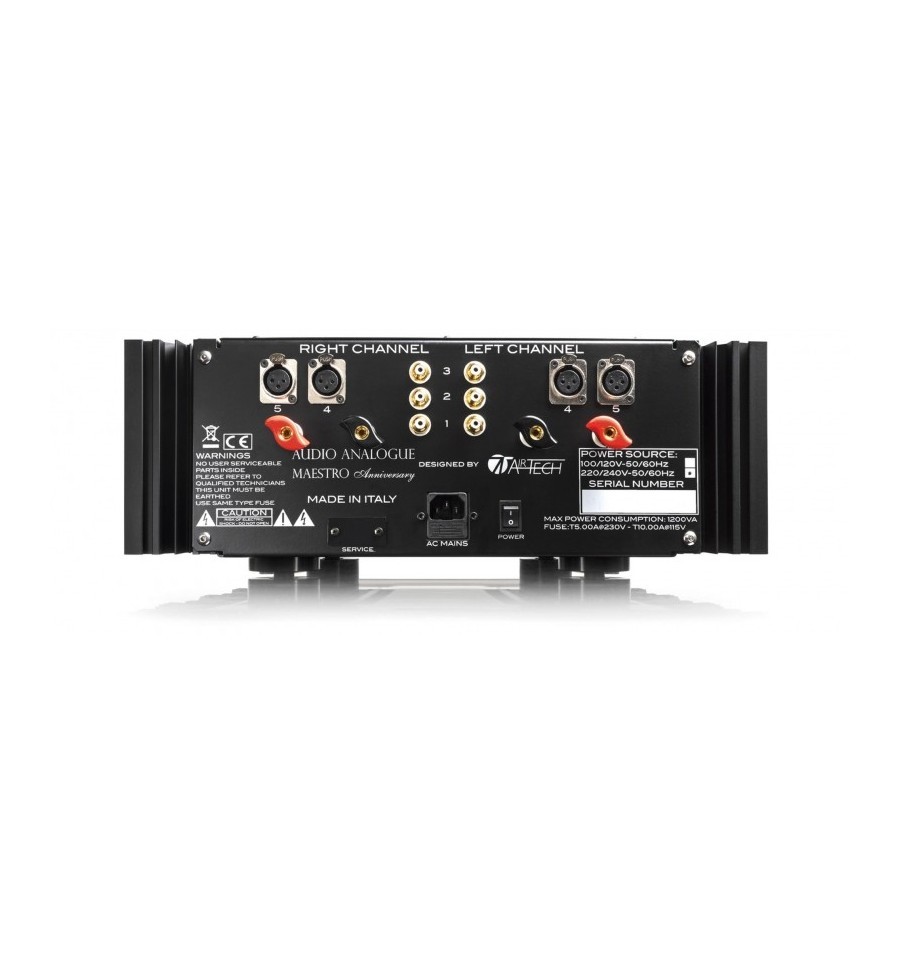

Channels - 2
RCA inputs - 3
XLR inputs - 2
Input impedance - 47KOhm
Maximum input signal - 6Vrms
Power on 8Ω load - 150W @ 1% THD + N
Power on 4Ω load - 300W @ 1% THD + N
Power on 2Ω load - 500W @ 1% THD + N
Sensitivity(8Ω output nominal power) - 720Rrms
Frequency Response(Att. 0dB, -3dB band) - 90KHz
Output resistance(2Ω nominal power and 1kHz) - 0.2Ohm
Input Noise(Band limits 0Hz-80kHz/A-weighted) - =20µV/=10µV
SNR - =100 dB
Standby power consumption(230VAC) - 0.7W
Dimensions(HxWxD) - 168x450x550 mm
Weight - 31 Kg
