Bra instegsnål! Denna nål medföljer skivspelare för mellan 5-10'000 kronor. Ersättare till gamla OM-serien som idag sitter på de allra enklaste spelarna.
2M Red features:
- an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
- a tipped Elliptical diamond and split pole pins with a copper wire

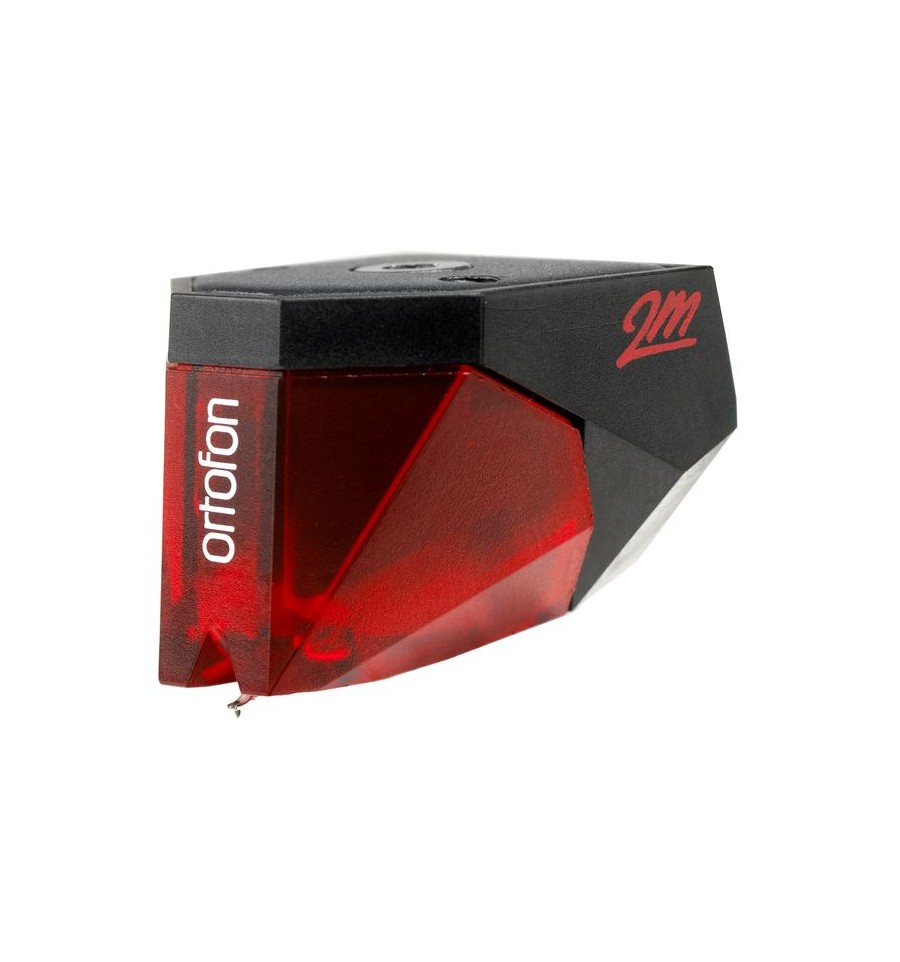

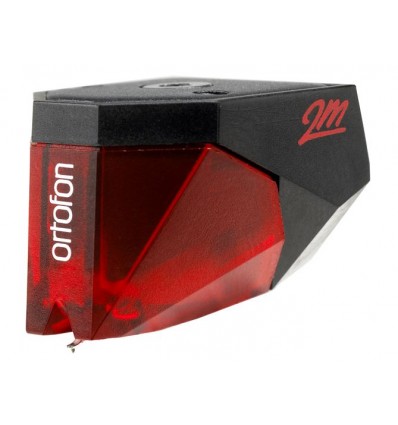

2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
TECHNICAL DATA
Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7,2 g
Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)
