En liten favorit här i butiken. Spelar med övertygande driv, fullt med detaljer och perfekt balans i alla register. En liten juvel för priset.

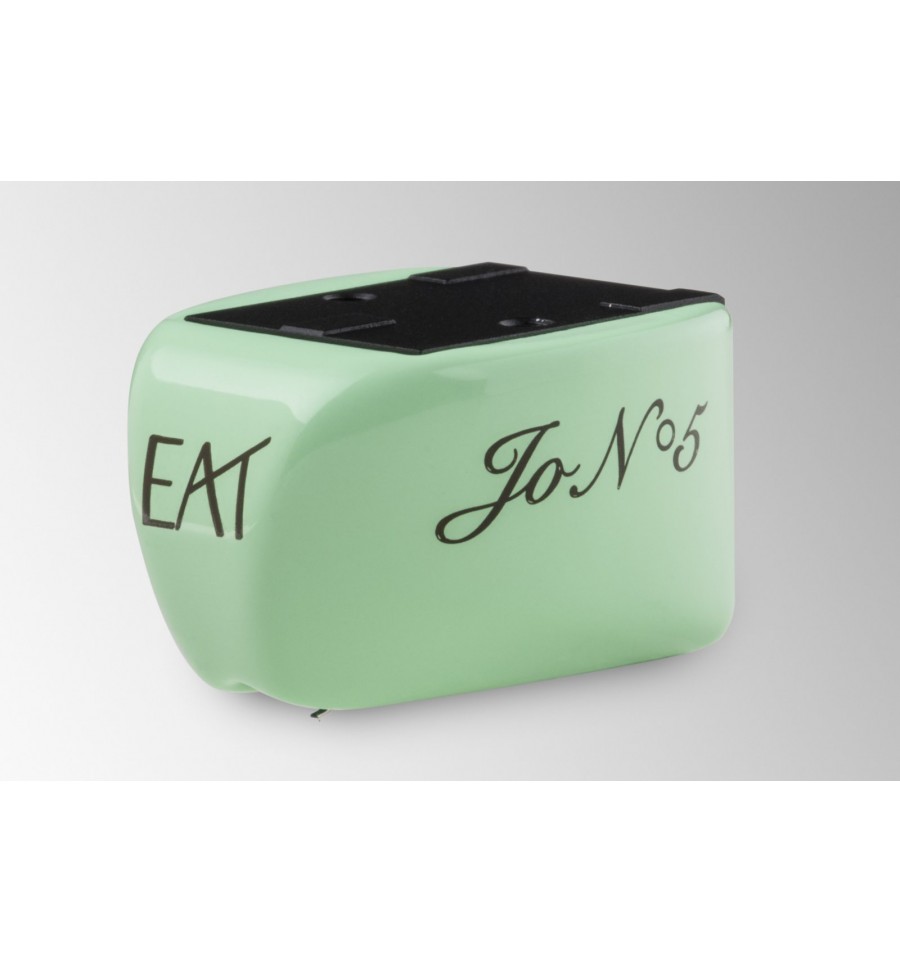

High End E.A.T. cartridge. It comes in unmistakeable mint green colour and features a truthful and immersive sound that is pure E.A.T.
E.A.T. is very proud to announce its second cartridge creation in history, after the highly acclaimed and successful Yosegi MC. Jo No.5 is an elegant masterpiece, both sonically as well as visually.

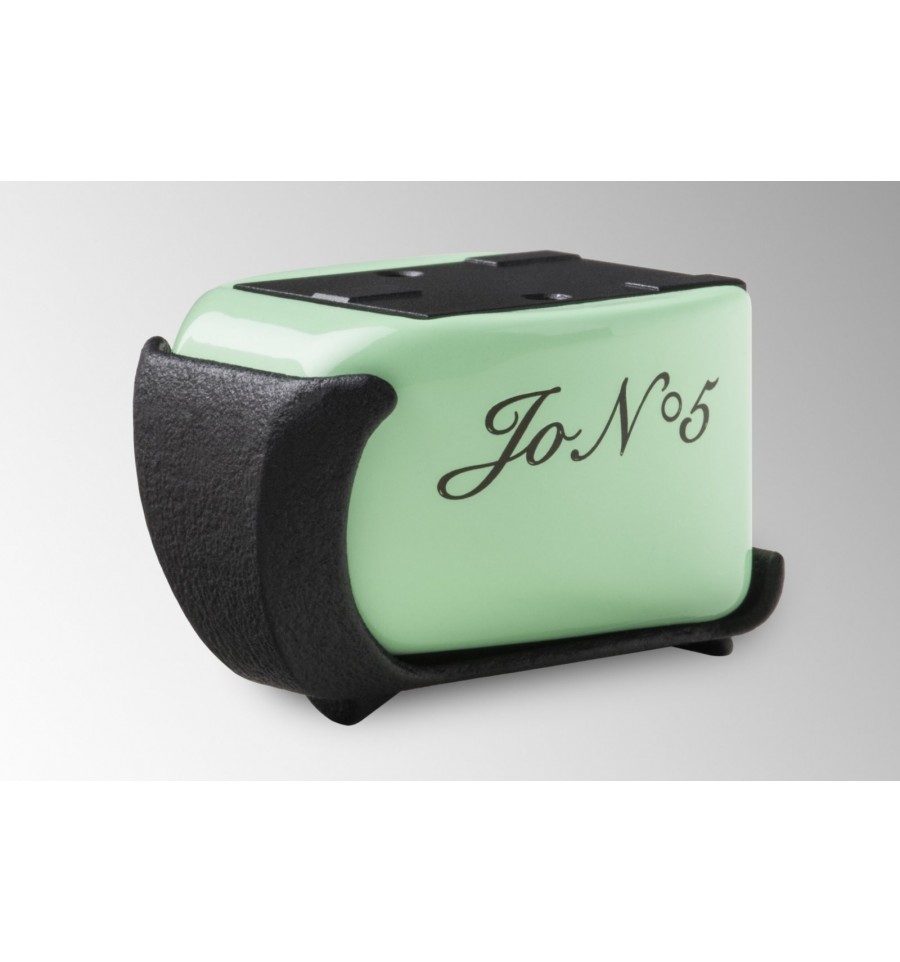

Cartridge body and stylus guard are produced by an additive manufacturing process which is called Selective Laser Sintering (SLS). This process sinters thin layers of powder with a laser to build the final structure.
Moving Coil Cartridge
- Moving Coil turntable pickup
- Nude Fine Line stylus type!
- Body and stylus guard made of Polyamide
- Selective Laser Sintering manufacturing process
- Elegant looks
- Unmistakeable E.A.T. mint colour!
E.A.T. JO N°5 CARTRIDGE TECHNICAL INFORMATION
| STYLUS TYPE | Nude Fine Line |
|---|---|
| CARTRIDGE WEIGHT | 15 g |
| STYLUS TIP RADIUS | 8/40 μm |
| FREQUENCY RESPONSE | 20 – 26.000 Hz ±1.5dB |
| OUTPUT VOLTAGE AT 1000 HZ | 5cm/sec. 0.33 mV |
| CHANNEL SEPARATION AT 1 KHZ | > 25dB |
| CHANNEL SEPARATION AT 15 KHZ | > 16dB |
| CHANNEL BALANCE AT 1KHZ | > 1.2 dB |
| COMPLIANCE, DYNAMIC/LATERAL | 12 μm/mN |
| TRACKING FORCE RANGE | 2.2-2.5 g (22-25 mN) |
| TRACKING FORCE RECOMMENDED | 2.4 g (24 mN) |
| TRACKING ABILITY AT 315 HZ AT RECOMMENDED TRACKING FORCE | 80 μm |
| TRACKING ANGLE | 20° |
| COIL WIRE MATERIAL | Pure 4N copper |
| RECOMMENDED LOAD IMPEDANCE | > 20Ω |
| INTERNAL IMPEDANCE, DC RESISTANCE | 5Ω |
Reviews
- E.A.T. E-Flat Turntable review by HighStyleThis turntable is colorfully and aesthetically full of contrasts, even in construction. Heavy plate and heavy chassis (High Mass) as opposed to a light unipivot shoulder creates a harmony for the eye, but also for the ear… Its performance/price ratio really makes a unique product. It feels that its character and the quality of the sound looks up to the heights of the High-End category at it's brother E.A.T. Forte.
- E.A.T. Jo N° 5 review by Positive FeedbackThe E.A.T. Jo N° 5 MC Cartridge is the best overall performing MC cartridge I have heard in a long time, and the current "price/performance value" of the decade.
- E.A.T. Jo N° 5 review by AnalogPlanetThe N° 5 manages to be both rich sounding and exciting. Never snooze-inducing or "soft".
- E.A.T. C-Major, E-Glo and Jo N° 5 review by HomeTheaterHifi.comI very much enjoyed my experience with the E.A.T GEAR. It is well made, sounds great – having excellent clarity, detail, and dynamics – and the three-part package is a good value.
Awards
- E.A.T. Jo N° 5 outstanding product by Hi-Fi NewsThe inclusively named European Audio Team (EAT) has delivered what may be a game-changer.
