ORTOFON MC CADENZA MONO Expand

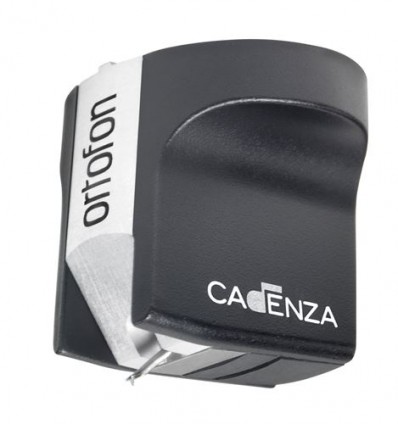

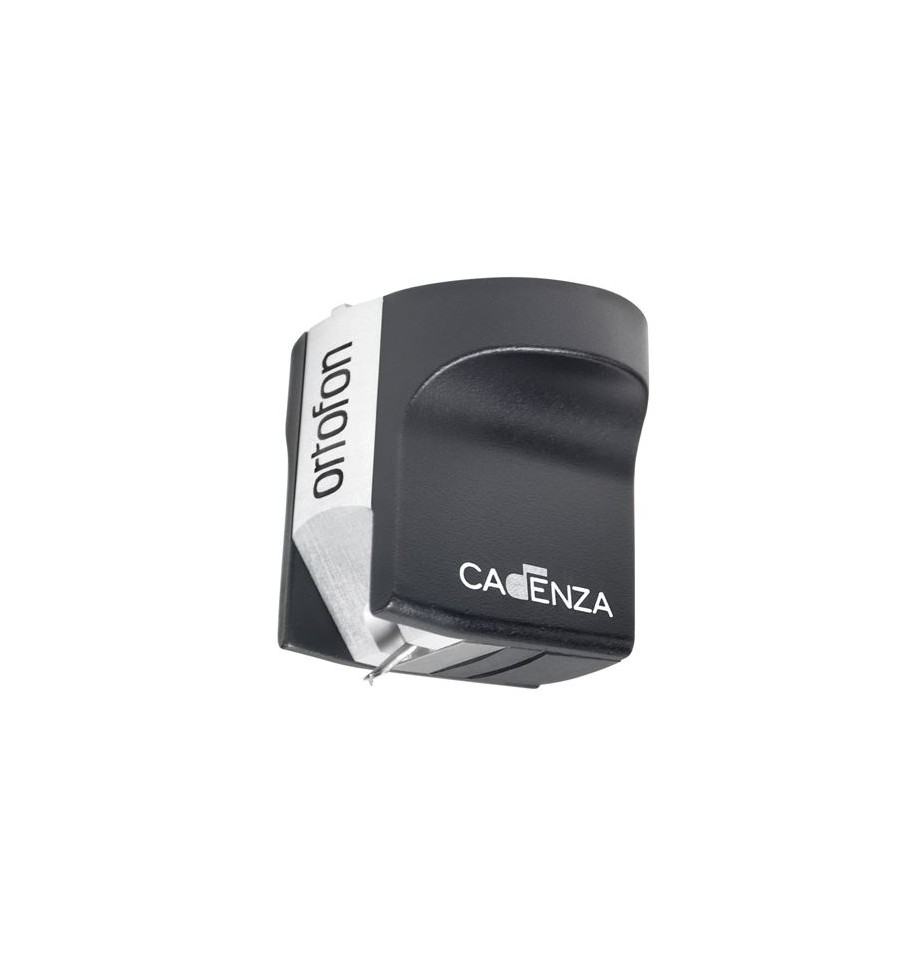

ORTOFON MC CADENZA MONO

Ortofon Ortofon

Ny

16 990 kr

inkl.

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever.
The stylus radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire.
An improved winding process on the armature allows a better channel balance.
For easy use the pins are connected so you get the same signal from both pairs of connecting pins.
Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate.

  • Output voltage at 1 kHz 5 cm/sec - 0.45 mV
  • Frequency range at -3dB - 20 Hz - 50 kHz
  • Frequency response - 20 Hz - 20 kHz +3/-1
  • Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
  • Compliance, dynamic, lateral - 12 μm/mN
  • Stylus type - Nude Fine Line on Alu cantilever
  • Stylus tip radius - r/R 8/40
  • Tracking force range - 2.2-2.7 g (22-27 mN)
  • Tracking force recommended - 2.5 g (25 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-500 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge colour - Natural/Black
  • Cartridge weight - 10.7 g
